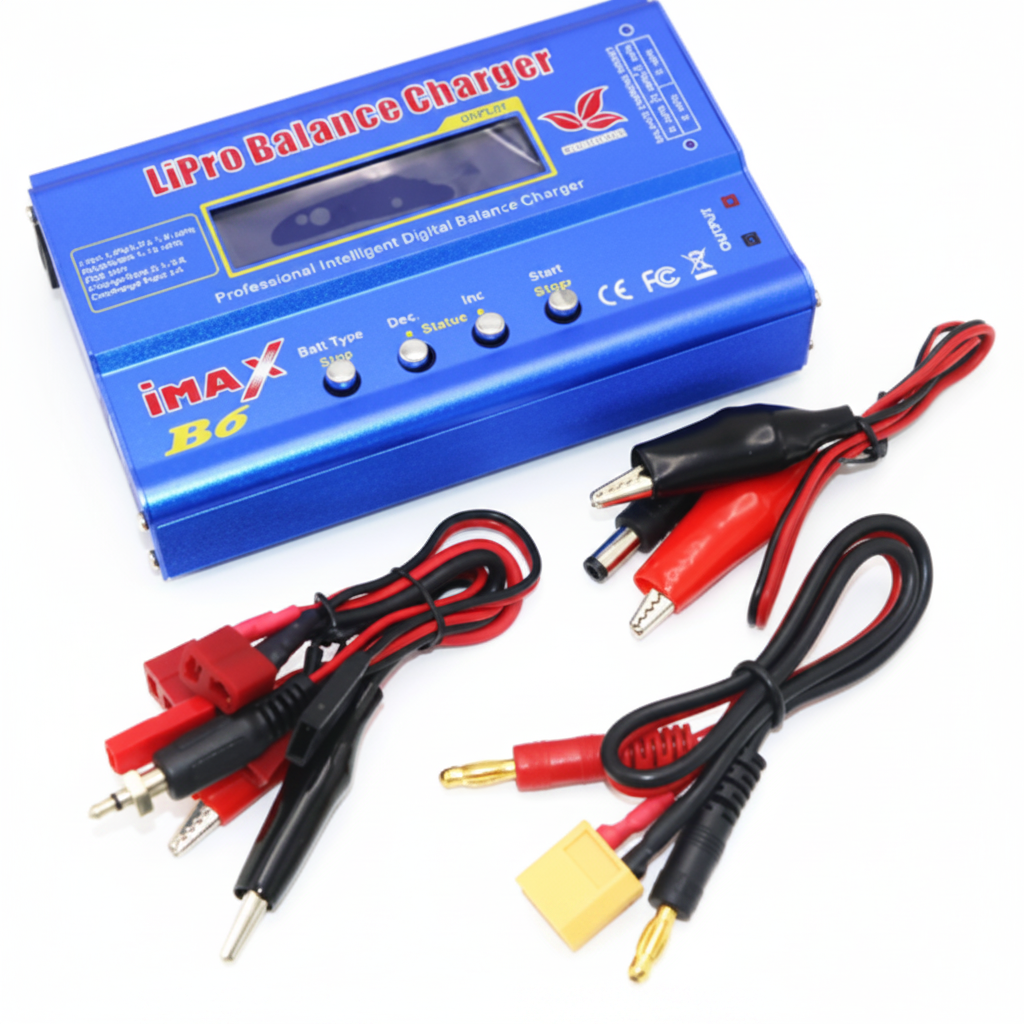

iMAX B6 80W XT60 LiPo Battery Balance Charger

80W High-Power Balance Output: Delivers up to 80W total charging power with a maximum continuous charge current of 6A, allowing fast and safe energy replenishment for multi-cell battery packs.

1S to 6S Lithium Compatibility: Supports balance charging across 1S to 6S (3.7V–22.2V) Lithium Polymer (LiPo), Lithium Ion (Li-Ion), and Lithium Iron Phosphate (LiFe) chemistry configurations.

Integrated Individual Cell Balancing: Built-in high-precision micro-controller balancer monitors and equalizes each cell's voltage during the charging process to prevent cell drift and preserve pack health.

Pre-soldered XT60 Power Output: Includes heavy-gauge main charging cables pre-terminated with high-current XT60 connectors for direct compatibility with FPV drones, RC models, and robotics.

Multi-Chemistry Support: Works seamlessly across multiple battery chemistries, including LiPo, Li-Ion, LiFe, NiMH, NiCd, and Lead-Acid (Pb) batteries.

Comprehensive Diagnostic Modes: Features specialized operational modes including Balance Charge, Fast Charge, Storage Charge (ideal for battery lifespan preservation), Discharge, and Cyclic Charging.

Housing & Casing Style: Heavy-duty blue anodized aluminum alloy enclosure designed for effective passive heat dissipation during high-power charging sessions.

Contact & Terminal Style: 4mm banana jack main output ports, 2S–6S JST-XH balance pin headers, DC 11–18V power inlet jack, and pre-soldered XT60 charge cable harness.

Technical Specifications:

Input Voltage: DC 11V – 18V.

Circuit Power: Max Charge Power 80W / Max Discharge Power 10W.

Charge Current Range: 0.1A – 6.0A.

Discharge Current Range: 0.1A – 2.0A.

Current Drain for Balancing: 300mA per cell.

Supported Cell Counts: LiPo / Li-Ion / LiFe (1-6S), NiMH / NiCd (1-15S), Pb battery voltage (2V – 20V).

Color: Metallic Blue.

Usage Advice: Requires an external DC power supply (11V – 18V) capable of supplying sufficient wattage. Always connect both the main XT60 power lead and the JST-XH balance lead when initiating a balance charge cycle.

Maintenance: Keep side cooling vents clear of dust and debris. Store in a cool, dry place when not in active operation.
