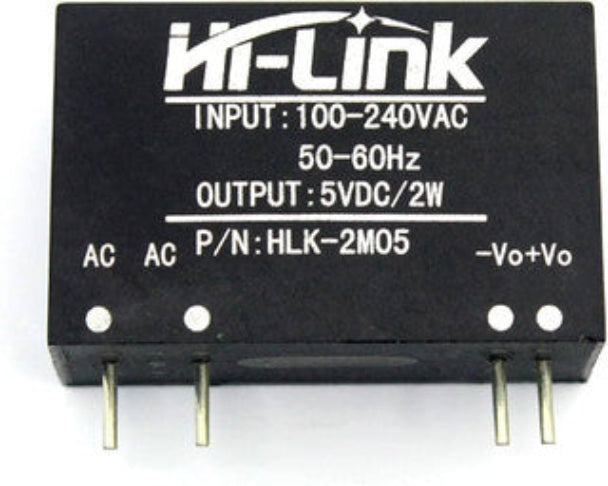

HLK-2M05 AC-DC Power Supply Module 220V to 5V

Ultra-Compact PCB-Mount Power Module: Encapsulated mini power supply converts household AC grid voltage into a clean, regulated 5V DC output at up to 0.4A (2W max), designed for direct PCB through-hole mounting.

Wide Mains AC Input Range: Operates reliably on 100V–240V AC (50/60Hz) grid voltage, ensuring global compatibility with low standby power consumption and minimal heat dissipation.

Fully Isolated & Encapsulated Construction: Plastic shell potting provides electrical isolation ($3000\text{VAC}$ input-to-output), ingress protection, moisture resistance, and dustproofing for sensitive embedded electronics.

Silent Solid-State Operation: Fan-less, completely noiseless operation engineered for low output ripple and high energy efficiency in compact smart devices.

Integrated Safety Protections: Internal circuitry safeguards connected low-voltage microcontrollers against short circuits, continuous over-current, and input voltage surges.

Housing & Casing Style: Fully encapsulated, flame-retardant plastic potted housing engineered for compact PCB layout integration and thermal dissipation.

Contact & Terminal Style: Standard through-hole PCB pin contacts (AC, AC, -Vo, +Vo).

Technical Specifications:

Model: HLK-2M05.

Input Voltage: AC 100V–240V (50/60Hz).

Output Voltage: DC 5V.

Output Current: 0.4A Max (400mA).

Rated Power: 2W.

Cooling: Passive thermal dissipation via internal epoxy potting compound.

Color: Black shell with white pin identification legend.

Usage Advice: Calculate continuous load requirements to stay within the 2W (400mA) rated threshold. Incorporate appropriate PCB trace clearance (creepage and clearance distances) between AC mains and DC low-voltage traces.

Maintenance: Solid-state potted module requires zero physical maintenance. Ensure proper air circulation inside tiny device enclosures.

Essential Ultra-Miniature Smart Home Node: Position as the ultimate PCB-mount step-down converter for IoT microcontrollers (ESP8266, ESP32, Arduino, Raspberry Pi Pico), smart light switches, wireless relays, and wall-box sensors.

Highlight Direct PCB Integration & High Isolation: Emphasize its tiny footprint and high AC-to-DC isolation that allows engineers to eliminate bulky external power adapters.

Recommended Cross-Sell Add-ons: Pair with HLK-5M05 AC-DC Power Supply Module 220V to 5V, HLK-PM01 AC-DC Power Supply Module 220V to 5V, HLK-PM03 AC-DC Power Supply Module 220v to 3.3V, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Hi-Link Power Supply Module (HLK) collection page under low-power embedded PCB AC-DC converters.
