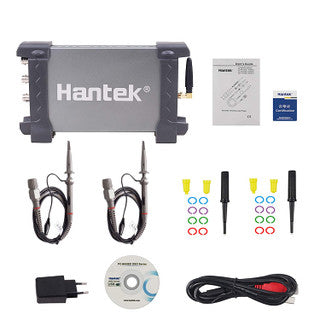

Hantek IDSO1070A WiFi 2-CH 70Mhz Oscilloscope

Wireless WiFi & USB Dual-Mode Connectivity: Connects wire-free via built-in Wi-Fi or directly through USB to iOS, Android, and Windows tablets, smartphones, and PCs for remote signal analysis.

70MHz Bandwidth & 250MSa/s Sampling Rate: High-performance dual-channel signal engine delivers a 70 MHz analog bandwidth and up to 250 MSa/s real-time sampling rate.

Multi-Touch Smartphone & Tablet Interface: Tap, pinch, and zoom seamlessly on mobile screens using full touch-control gesture operations within the dedicated Hantek application.

Integrated Lithium Battery Operation: Built-in 2000 mAh rechargeable lithium battery provides up to 4 hours of continuous wireless field operation without mains power.

FFT Spectrum Analysis & Math Functions: Supports Fast Fourier Transform (FFT) spectrum breakdown along with standard math functions (+, -, x , \ ) for detailed signal harmonics evaluation.

Multi-Format Data Export & Report Generation: Easily save waveform captures, reference curves, and visual test reports directly to your tablet or PC in CSV, TXT, or image formats.

Housing & Hardware Construction: Rugged, anti-slip rubberized protective casing with reinforced corner bumpers, standard BNC input channels, and Micro-USB charging/data port.

Technical Specifications:

Analog Bandwidth: 70MHz (2 Channels).

Real-Time Sampling Rate: 250 MSa/s.

Input Impedance: $1\text{M}\Omega / 25\text{pF}$.

Vertical Sensitivity: 10 mV/div - 5 V/div.

Wireless Interface: Wi-Fi (802.11 b/g/n).

Power Supply: Internal 2000 mAh lithium battery (5V / 2A USB charging).

Usage & Setup Advice: Connect your mobile device or tablet to the IDSO1070A Wi-Fi hotspot before opening the app. Match software attenuation settings (1 X/10X) with physical probe switches.

Maintenance & Cleaning: Charge battery fully before storing long-term. Wipe exterior casing clean with a soft, dry microfiber cloth; avoid harsh solvents.

Essential Wireless Diagnostic Tool for Mobile Engineers: Position as a cutting-edge, mobile-first oscilloscope designed for field technicians, automotive diagnostics specialists, and engineers who work with tablets and mobile devices.

Highlight Wi-Fi Wireless Freedom & Touch Control: Emphasize its Wi-Fi connectivity as a major advantage when taking measurements in hazardous, elevated, or cramped field conditions away from a fixed workbench.

Recommended Cross-Sell Add-ons: Pair with P6100 DC-100MHz Passive Oscilloscope Probe, 1M BNC male to Dual crocodile clamp, Oscilloscope test cable, Hantek 6022BE 2 Channels 20Mhz Oscilloscope, and SA6 6GHz Portable Spectrum Analyzer – RF Spectrum Analyzer, Signal Tester, Handheld.

Flagship Wireless Diagnostic Star: Feature prominently in your Oscilloscopes & Generators collection as a premium wireless testing option.
