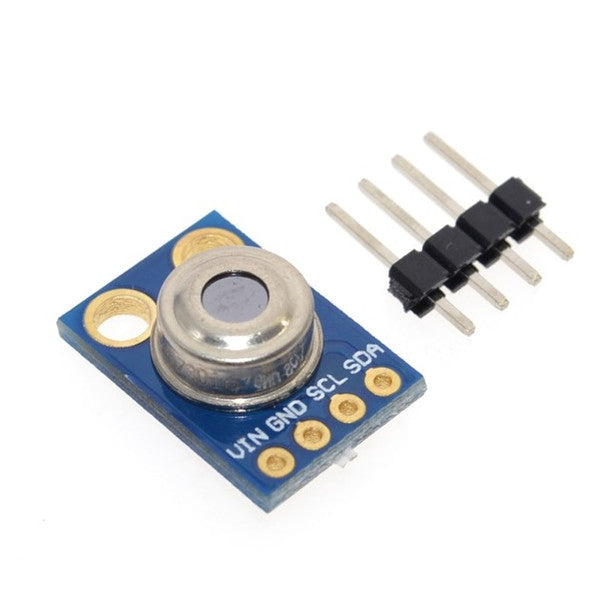

GY-906 MLX90614ESF Infrared Temperature Sensor

Non-Contact Infrared Thermal Sensing: Utilizes Melexis MLX90614ESF non-contact infrared technology to accurately measure surface temperatures without physical surface contact.

Factory Calibrated Signal Processing: Features fully calibrated digital outputs with integrated 17-bit ADC and powerful DSP unit for precise temperature resolution.

Standard SMBus / I2C Bus Interface: Communicates over an SMBus digital interface (I2C compatible), allowing easy multi-sensor daisy chaining on a single microcontroller bus.

Wide Temperature Sensing Spectrum: Measures ambient temperatures from -40°C to +125°C and target object surface temperatures from -70°C to +380°C.

Onboard Signal-Conditioning Breakout PCB: Mounted on a compact breakout board with built-in pull-up resistors and decoupling capacitors for immediate breadboard or project integration.

Board Material: High-grade FR-4 glass-epoxy breakout PCB with gold-plated pin header pads and metallic TO-39 sensor package.

Technical Specifications:

Sensor Element: Melexis MLX90614ESF-AAA Non-Contact IR Thermometer IC.

Operating Supply Voltage: 3.0V – 5.0V DC.

Ambient Temperature Range: -40°C – +125°C.

Target Object Temperature Range: -70°C – +380°C (-+ 0.5°C accuracy in medical range).

Field of View (FOV): 90° standard field of view.

Board Color: Blue PCB with Metallic Sensor Canister.

Usage Advice: Align target objects within the 90° field of view angle; use standard MLX90614 software libraries in Arduino IDE or CircuitPython for fast setup.

Maintenance: Keep the central optical IR window clean and free from dust, fingerprints, or solvent condensation to maintain high measurement accuracy.

Essential Non-Contact Temperature Sensor: Position as a primary component for touchless medical/body thermometers, industrial hot-spot detectors, automated screening gates, and HVAC diagnostics.

Highlight Non-Contact Thermal Safety: Emphasize how non-contact IR measurement prevents cross-contamination and sensor wear in high-temperature or hygienic testing environments.

Recommended Cross-Sell Add-ons: Pair with GY-906 MLX90614ESF -DCI Sensor Module, MLX90614ESF Non-Contact Infrared Thermometer, AMG8833 IR Thermal Imager Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Temperature Sensor Modules collection page as your standard non-contact infrared temperature breakout board.
