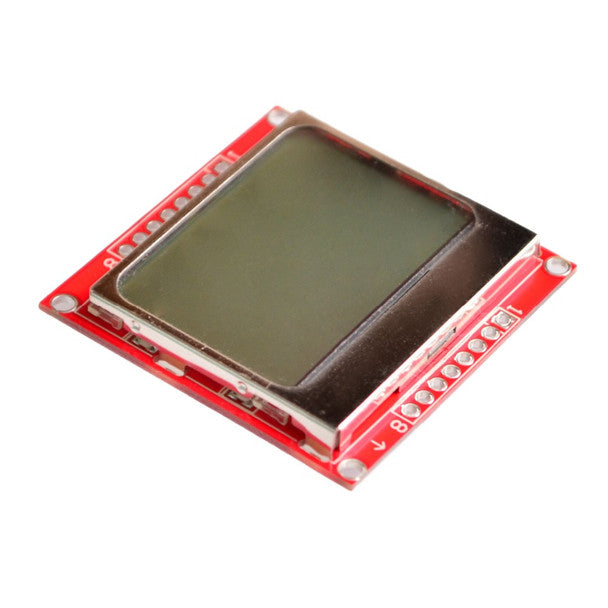

Graphic LCD 84X48 - NOKIA 5110

Classic 84 x 48 Pixel Matrix Screen: Features the iconic PCD8544 monochrome LCD matrix, ideal for rendering custom bitmapped logos, retro graphics, compact dynamic menus, and multi-line text.

Low-Power 84x48 Monochrome LCD: Ultra-efficient power consumption makes it a top choice for battery-operated handheld tools, portable telemetry sensors, and custom wearable devices.

Efficient SPI Serial Interface: Operates using a fast 5-wire SPI communication protocol (CLK, DIN, DC, CE/CS, RST), requiring minimal microcontroller GPIO pin overhead.

Integrated LED Backlight: Equipped with a built-in LED backlight to maintain high contrast and clear screen visibility in dark or low-light working environments.

Broad Library Support: Natively supported by widely used graphics libraries like Adafruit PCD8544, Adafruit GFX, and U8g2 for easy implementation across Arduino, Raspberry Pi, and ESP microcontrollers.

Module Construction: Built on a durable FR-4 glass epoxy printed circuit board with a protective metal bezel frame surrounding the glass LCD matrix panel.

Operating Voltage & Logic: Power supply operates on 2.7V–3.3 V DC logic. Use logic level converters or inline current resistors when connecting to 5V microcontrollers (such as Arduino UNO) to protect the PCD8544 IC.

Handling Precautions: Handle carefully by the outer circuit board edges. Avoid applying direct pressure or force on the display glass panel and protective metal tabs.

Environmental Limits: Operating temperature range spans -20°C to +70°C. Keep protected from static discharge, conductive metal dust, and direct liquid moisture.

Retro DIY Console Essential: Highlight as the classic choice for building retro mini game consoles (like Snake, Pong, or Flappy Bird), custom desktop widgets, and nostalgic interfaces.

Pin-Saving SPI Graphic Alternative: Position as a low-power, pin-efficient step up from basic character LCDs for makers who need custom dynamic graphics on budget builds.

Recommended Cross-Sell Add-ons: Pair with Logic Level Converters (5V to 3.3V), Arduino UNO / Pro Mini Boards, ESP8266 / ESP32 Boards, and Solderless Breadboards & Jumpers.

Great for Portable Telemetry Readouts: Ideal for handheld battery testers, mini weather monitoring stations, field signal detectors, and IoT diagnostic tools.
