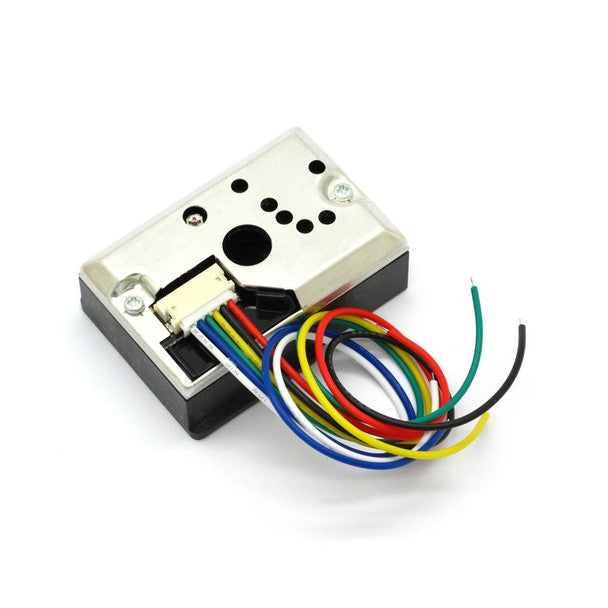

GP2Y1010AU0F Optical Dust Sensor

Infrared Optical Sensing: Uses an infrared emitting diode (IRED) paired with a phototransistor to detect light scattered by airborne dust particles.

Effective Cigarette Smoke & House Dust Detection: Optimized to detect fine particles like cigarette smoke and household dust for reliable indoor air monitoring.

Analog Pulse Output: Delivers an analog voltage pulse output proportional to dust concentration for straightforward ADC sampling on microcontrollers.

Low Power Consumption: Operates on low current draw (20 mA max, 11 mA typical), making it suitable for continuous air monitoring systems.

Compact Breakout Form Factor: Features an integrated optical sensing chamber with a 6-pin interface cable for easy mounting inside air purifiers and sensors.

Housing Material: Lightweight plastic sensing body with metal internal shielding frame and 6-pin connection harness.

Technical Specifications:

Sensor Model: Sharp GP2Y1010AU0F.

Operating Supply Voltage: 4.5V – 5.5V DC (5.0V typical).

Current Consumption: 11 mA (typical), 20 mA (max).

Detection Sensitivity: 0.5V / (100 µg/m³).

Signal Output: Analog Voltage Pulse Output.

Color: White Outer Casing with Black Center Optical Hole.

Usage Advice: Connect the 6-pin cable using the recommended drive resistor and capacitor circuit; sample the analog output pin during the infrared LED pulse window.

Maintenance: Keep the center optical sampling chamber clear of heavy lint or liquid obstructions; clean periodically using dry compressed air.

Essential Analog Dust Diagnostic Sensor: Position as a classic, cost-effective optical dust sensor for DIY air quality monitors, smart home air purifiers, and automated ventilation fans.

Highlight Compact Infrared Detection: Emphasize how its proven Sharp infrared optical design provides continuous analog dust tracking at an accessible price point.

Recommended Cross-Sell Add-ons: Pair with PM2.5 Air particle dust sensor module, PMS5003 Dust laser Sensor Module, ACEBOTT PM2.5 Air Quality Sensor, and CCS811 Air Quality Sensor.

Featured Collection Star: Display prominently on your Air Quality Sensor collection page as your standard analog optical dust sensor.
