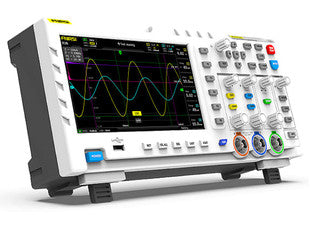

FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator

2-in-1 Dual-Channel Oscilloscope & DDS Signal Generator: Integrates a 100MHz dual-channel digital storage oscilloscope with a built-in DDS function signal generator (14 basic waveforms} + 1 customizable arbitrary waveform).

1GSa/s High-Speed Real-Time Sampling: High-performance sampling engine delivers up to 1GSa/s real-time sampling rate and 240Kbit storage depth for clear waveform acquisition.

7-Inch High-Definition Color Display: Vibrant 7-inch TFT LCD panel (800 x 480 resolution) with true-color representation, clear waveform traces, and dynamic measurement parameters.

High-Voltage Anti-Burn Protection: Built-in high-voltage protection module withstands continuous voltages up to 400V (10X probe setting) without risk of damaging internal circuitry.

1-Key Automatic Setup & Screenshot Storage: Includes an efficient AUTO button for automatic parameter adjustment alongside 1 GB internal flash storage that holds up to 1000 screenshot images and waveform datasets.

FFT Spectrum Analysis & Lissajous Display: Supports Fast Fourier Transform (FFT) for frequency spectrum breakdown alongside Lissajous graphic display for comparing phase relationships between signals.

Enclosure & Control Components: High-impact, flame-retardant ABS benchtop chassis with non-slip base pads, multi-function control knobs, tactile silicone keys, and solid BNC input channels.

Technical Specifications:

Analog Bandwidth: 100MHz (2 Channels).

Real-Time Sample Rate: 1 GSa/s.

DDS Signal Generator Output: 0 - 10 MHz (Sine), up to 2MHz (Other Waveforms).

Vertical Sensitivity: 50mV/div - 500V/div.

Input Impedance: 1 M ohms.

Power Supply: Powered via standard 5V / 2 A USB power adapter.

Usage Advice: Verify that the physical attenuation switch on your 100 MHz oscilloscope probes matches the vertical multiplier selected in the oscilloscope menu before testing high-voltage circuits.

Maintenance & Cleaning: Keep ventilation slots free of dust. Wipe the screen and housing gently using a soft, dry microfiber cloth.

Essential Multi-Tool Bench Instrument: Position as an unbeatable budget-friendly 2-in-1 laboratory instrument for electronics repair technicians, hobbyists, audio engineers, and engineering students.

Highlight Dual Oscilloscope & DDS Generator Value: Emphasize its combined oscilloscope and built-in DDS waveform generator capabilities as a space-saving and cost-effective alternative to separate benchtop units.

Recommended Cross-Sell Add-ons: Pair with P6100 DC-100MHz Passive Oscilloscope Probe, 1M BNC male to Dual crocodile clamp, Oscilloscope test cable, UTD2102CEX+ 2 Channels Digital Storage Oscilloscope, and DSO2D15 2-Channel + 150MHz 1GSa/s Signal Generator Oscilloscope 2 in 1.

Flagship Dual-Function Star: Feature prominently as a top-value benchtop oscilloscope in your Oscilloscopes & Generators collection.
