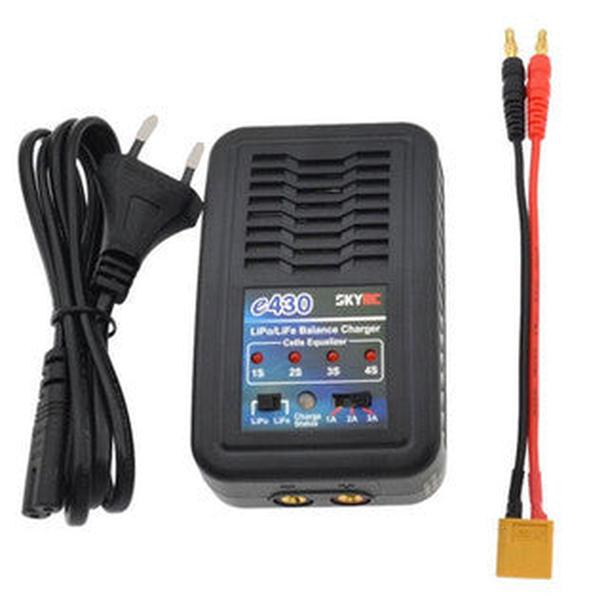

E430 2S-4S LiPo / LiFe Battery Charger

Multi-Chemistry Lithium Support: Specially engineered to balance charge both Lithium Polymer (LiPo) and Lithium Iron Phosphate (LiFe) battery packs with dynamic multi-chemistry selection.

2S to 4S Cell Capability: Accommodates 2-cell (7.4V/6.6V), 3-cell (11.1V/9.9V), and 4-cell (14.8V/13.2V) battery configurations via onboard balance ports.

Selectable Charge Current Modes: Built-in current selector switch allows users to toggle between 1A, 2A, or 3A charging currents to match battery capacity and optimal C-rate replenishment.

Direct AC Mains Power Input: Plugs directly into standard household wall outlets (100V – 240V AC input) with an internal power supply unit, eliminating the need for external power bricks.

Individual Cell Balance Ports: Integrated precision balance circuitry independently monitors and equalizes each cell's voltage to prevent cell drift and maximize pack lifespan.

Quad LED Status Indicators: Features four dedicated LED status lights for clear visual monitoring of charging progress, balance state, and full charge completion.

Housing & Casing Style: Flame-retardant ABS plastic casing with side heat-dissipation vents for passive thermal management.

Contact & Terminal Style: Onboard JST-XH balance ports (2S, 3S, 4S), XT60 main power output port, and standard 2-pin AC socket.

Technical Specifications:

Input Voltage: 100V – 240V AC (50/60Hz).

Circuit Power: 30W Max.

Selectable Charge Current: 1.0A, 2.0A, or 3.0A.

Supported Cell Counts: 2S, 3S, and 4S (LiPo / LiFe).

Color: Black housing with clear mode selection switch.

Usage Advice: Select the target battery chemistry (LiPo or LiFe) using the slider switch before connecting the battery. Connect both the main output lead (XT60) and the balance lead (JST-XH) prior to starting charge cycles.

Maintenance: Keep balance ports free of dust, lint, and metallic debris. Unplug from the AC wall outlet when not in active use.
