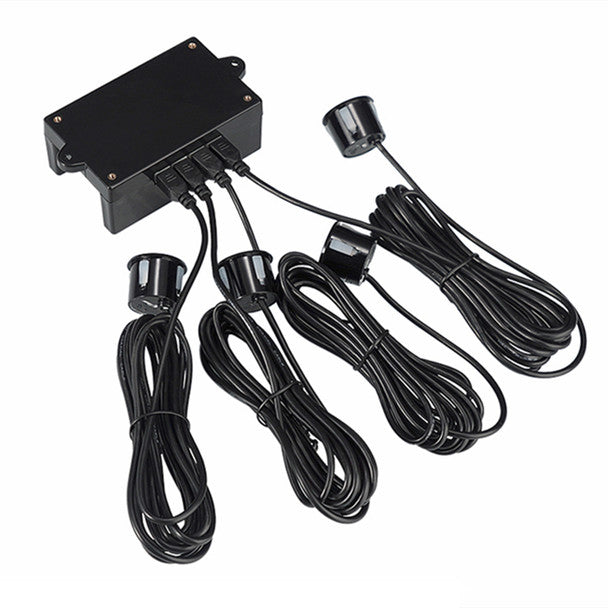

DYP-A05 One Drag Four Ultrasonic Measuring Module sensor

One-Drag-Four Multi-Probe Architecture: Connects up to four independent waterproof ultrasonic transducer probes to a central controller board, enabling 360-degree spatial coverage and multi-directional obstacle detection.

Industrial High-Precision Ranging: Provides millimeter-level accuracy and reliable non-contact distance evaluation across short to long range requirements.

Waterproof Split Transducer Heads: Features four IP67-rated waterproof ultrasonic probes on extended cables, allowing outdoor or wet environment deployment while protecting central electronics.

Integrated Blind-Spot Optimization: Engineered with specialized acoustic algorithm processing to minimize detection blind zones and suppress multi-path signal echo interference.

Standard Industrial Communication Interface: Delivers clean serial telemetry data (UART/RS485 output) for seamless integration into host controllers, industrial PLCs, and robotic processing units.

Housing Material: Sealed ABS plastic central controller enclosure with stainless steel/rubber enclosed waterproof ultrasonic probe heads.

Technical Specifications:

Sensor Model: DYP-A05 Series (One-Drag-Four Layout).

Probe Configuration: 4 Independent External Transducers.

Operating Voltage: 3.3V – 5.0V DC (or 12V–24V DC industrial power depending on controller variant).

Interface Protocol: UART / RS485 Serial Output.

Protection Rating: IP67 Waterproof Probes.

Color: Black Controller & Black Shielded Transducer Assemblies.

Usage Advice: Mount the four probes securely around your vehicle or enclosure perimeter; connect the central controller board to host controller serial pins (TX/RX) to read multi-channel distance streams.

Maintenance: Keep transducer faces free of mud, ice, or dense dirt accumulation; inspect probe cables periodically to ensure no severe tension or outer jacketing damage.

Essential Multi-Channel Sonar Module: Position as the ultimate all-in-one ultrasonic array for autonomous mobile robots (AMRs), AGVs, smart AG vehicles, reverse parking assistance systems, and perimeter monitoring.

Highlight Centralized 4-Probe Efficiency: Emphasize how driving four sensors from a single processing unit cuts wiring complexity, frees up controller I/O ports, and eliminates cross-talk noise between independent sensors.

Recommended Cross-Sell Add-ons: Pair with A02YYUW - 3-450cm waterproof Ultrasonic Module, JSN-SR04T Waterproof Ultrasonic Sensor, GY-US42 I2C PIXHAWK/APM Ultrasonic Range Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Multi-Brand Ultrasonic Sensors collection page as your flag-ship multi-probe ultrasonic distance solution.
