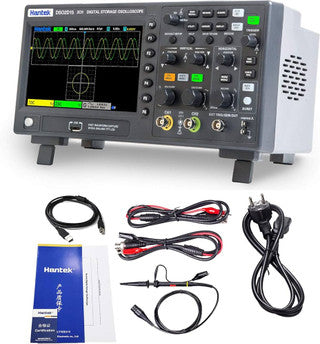

DSO2D15 2-Channel + 150MHz 1GSa/s Signal Generator Oscilloscope 2 in 1

2-in-1 Digital Storage Oscilloscope & Signal Generator: Combines a high-performance 150MHz dual-channel digital oscilloscope with an integrated 25MHz arbitrary waveform function generator in a single benchtop unit.

1GSa/s High-Speed Sampling Rate: Features a real-time sampling rate of up to 1GSa/s (500MSa/s dual-channel) and an 8M memory depth for capturing fine transient waveform details.

Built-In 25MHz Waveform Generator: Generates sine, square, ramp, exponential, and customizable arbitrary waveforms directly from the rear/front output ports without needing a secondary signal generator.

7-Inch HD Color Display: Large 7-inch TFT LCD panel (800 x 480 resolution) provides vivid dual-channel waveform visualization, spectrum analyzer FFT, and measurement statistics.

Extensive Trigger & Protocol Decoding: Features Edge, Pulse, Video, Slope, and Overtime triggers alongside hardware serial bus decoding for I2C, SPI, UART/RS232, and CAN protocols.

USB Host & Device Connectivity: Equipped with front USB host for flash drive data export/screenshots and rear USB device port for PC remote control and analysis software.

Enclosure & Control Hardware: Durable ABS benchtop housing with non-slip rubber feet, multi-function rotary encoders, tactile pushbuttons, and solid BNC channel inputs.

Technical Specifications:

Analog Bandwidth: 150 MHz (2 Channels).

Sampling Rate: 1 GSa/s (Single Channel), 500 MSa/s (Dual Channel).

Function Generator Frequency: 1 mHz - 25 MHz.

Vertical Sensitivity: 2 mV/div - 10 V/div.

Memory Depth: 8 M pts.

Input Impedance: 1M ohms -+ 2% in parallel with 20pF -+ 3pF.

Usage Advice: Align probe attenuation settings (1X /10X) on both the physical probe switch and the oscilloscope menu before making high-voltage measurements.

Maintenance & Cleaning: Keep ventilation grills clear of dust and obstruction. Wipe screen and outer casing using a soft, dry microfiber cloth.

Essential All-in-One Benchtop Workhorse: Position as a premier cost-effective dual-instrument solution for electronics design labs, embedded systems engineers, educational facilities, and advanced repair technicians.

Highlight Integrated Signal Generator & Serial Decoding: Emphasize the combined function generator and protocol decoding capability as a massive cost and space saving over purchasing standalone units.
