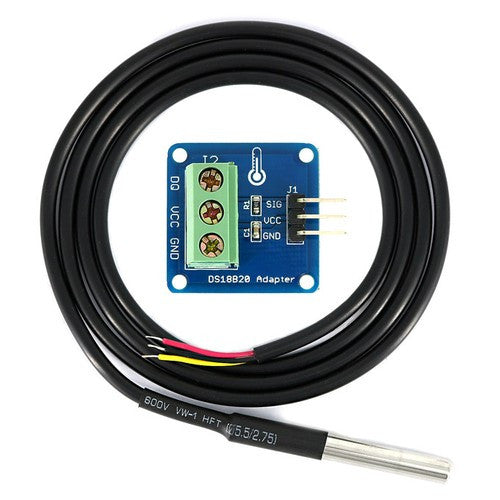

DS18B20 Adapter Module for Arduino

Integrated Pull-Up Resistor: Built-in 4.7 k Ω pull-up resistor eliminates the need for external breadboard resistors when interfacing DS18B20 1-Wire sensors with microcontrollers.

Plug-and-Play Terminal Block: Features a 3-pin screw terminal block for fast, secure connections with bare-wire DS18B20 probes without requiring soldering.

Standard 3-Pin Header Interface: Standard 0.1" header pins (VCC, GND, DAT) allow effortless connection to Arduino, Raspberry Pi, ESP8266, and ESP32 development boards.

Compact Breakout Board Design: Ultra-small footprint with pre-drilled mounting holes makes it easy to integrate into tight enclosures and prototyping setups.

Power LED Indicator: Features an onboard status LED to provide instant visual verification of board power.

Board Material: High-grade FR-4 glass-epoxy PCB with SMD components, 3-pin screw terminal, and standard 0.1" male header pins.

Technical Specifications:

Operating Voltage: 3.0V – 5.5V DC.

Interface Type: 1-Wire Digital Signal Protocol.

Onboard Resistance: 4.7 kΩ (1-Wire bus pull-up).

Board Color: Blue PCB with Green Terminal Block.

Usage Advice: Match lead colors correctly to the terminal labels (VCC, GND, DATA) to avoid damaging the sensor probe or microcontroller pins.

Maintenance: Keep the breakout module dry and clean using isopropyl alcohol to prevent shorts across sensitive signal lines.
