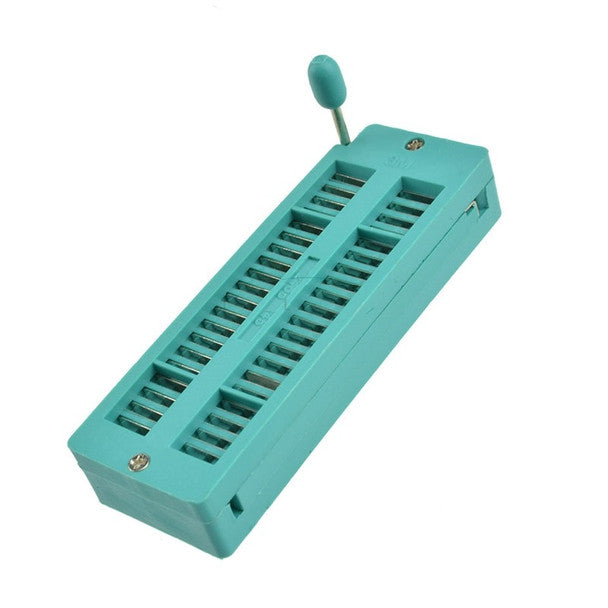

DIP 40 Pin Universal programmer IC Socket

Zero Insertion Force (ZIF) Design: Lever-actuated mechanism clamps IC leads firmly without applying downward force, preventing bent pins and extending chip lifespan.

Universal 40-Pin Dual Inline Package (DIP) Layout: Accommodates dual inline package integrated circuits from 8 pins up to 40 pins with standard 0.6-inch (15.24mm) wide rows and 2.54mm (0.1-inch) pin pitch.

Low-Resistance Tin-Plated Contacts: Beryllium copper / phosphor bronze contacts ensure low contact resistance and reliable conductivity during repeated read, write, and test cycles.

Standard Through-Hole (THT) PCB Footprint: Dual-row solder pins fit directly onto standard universal programmers, development boards, and prototype expansion PCBs.

High-Cycle Durability: Rated for thousands of insertion and extraction cycles, making it ideal for high-volume programming jigs and testing fixtures.

Module Construction: Molded from durable, heat-resistant Green/Black PBT glass-filled thermoplastic UL94V-0 housing with tin/gold-plated alloy contacts and a metal locking lever.

Operating Voltage & Logic: Rated for isolation and signal line pass-through up to 500V AC RMS, supporting standard 1.8V, 3.3V, and 5V C IC programming logic.

Handling Precautions: Always lift the locking arm fully (90°) before inserting or removing target ICs. Do not force chips into the socket while the lever is in the locked position.

Environmental Limits: Operating temperature range spans -55°C to +105°C. Keep clean from flux residue, solder splatter, and metallic particles.

Essential Replacement & Upgrading Component: Position as the ideal replacement socket for worn-out ZIF bases on universal programmers like the TL866II, CH341A, and PICKIT adapters.

Must-Have Prototyping Accessory: Highlight how easily makers and engineers can solder this unit onto custom PCB jigs for fast firmware flashing and IC testing.

Recommended Cross-Sell Add-ons: Pair with TL866-3G Universal Programmers, PICKIT 3 Programming IC Socket Adapters, PIC Microcontrollers, and Perforated Prototype Boards.

Ideal for Production & Repair Benches: Excellent low-cost solution for electronics repair shops, university laboratories, and hardware production lines.
