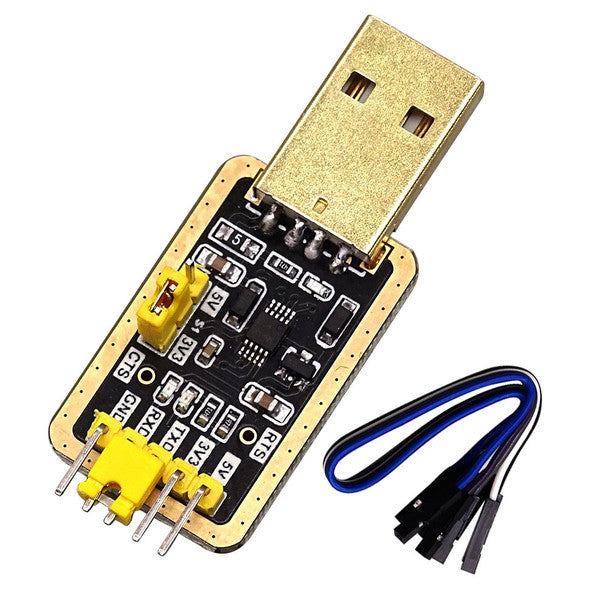

CH340G USB to RS232 TTL Auto Converter Adapter Module

CH340G USB-to-UART Serial Transceiver: Powered by the reliable WCH CH340G IC, converting USB 2.0 bus signals into asynchronous 3.3V and 5V TTL serial logic.

Automatic Hardware Reset & Program Download: Features integrated auto-reset functionality (DTR/RTS lines) for seamless, hands-free firmware flashing on ESP8266, ESP32, and Arduino target microcontrollers.

Selectable Dual Voltage Support (3.3V / 5V): Includes onboard jumper selection headers to match signal levels and power outputs directly to your target circuit's logic level.

Integrated LED Status Indicators: Onboard power, TX (Transmit), and RX (Receive) activity LEDs provide instant visual feedback during data transmission and serial debugging.

Self-Resetting Fuse Protection: Built-in onboard resettable fuse safeguards your host computer’s USB port against overcurrent and short-circuit faults.

Module Construction: Built on a compact double-sided FR-4 glass epoxy PCB with standard 2.54mm header pins, gold-plated USB traces, and surface-mount passive components.

Power Supply & Operating Voltage: Operates logic and power pass-through on 3.3V or 5V DC supplied directly via the USB Type-A port.

Handling Precautions: Ensure correct voltage selection jumpers are placed before powering target boards. Practice standard ESD precautions to protect onboard IC pins.

Environmental Limits: Operating temperature range spans -40°C to +85°C. Keep protected from static discharge, conductive metal dust, and liquid moisture.

Essential Serial Communication Tool: Position as the indispensable USB-to-TTL serial adapter for microcontrollers, router firmware upgrades, and embedded debugging.

Seamless Auto-Flash Capability: Highlight its automatic reset lines, making it effortless to upload code to ESP8266 and ESP32 modules without manually pressing boot buttons.

Recommended Cross-Sell Add-ons: Pair with Dupont Jumper Wires, ESP8266/ESP32 Boards, Solderless Breadboards, and Mini USB Extensions.

Ideal for Hardware Hacking & Repairs: Perfect hardware adapter for unbricking routers, flashing set-top boxes, configuration of GPS/Bluetooth modules, and serial terminal monitoring.
