Bluetooth 4.0 CC2540/CC2531 Programmer Wire

TI SmartRF / CC-Debugger Compatibility: Specially designed connector cable adapter for programming and debugging Texas Instruments CC2540, CC2531, CC2530, and CC2541 Bluetooth LE / Zigbee SoC modules.

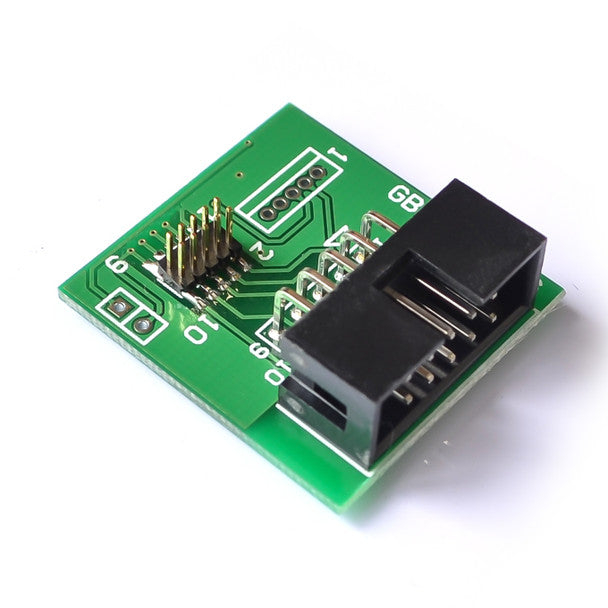

1.27mm to 2.54mm Pitch Adapter: Features a pitch conversion board that transitions standard high-density 1.27mm (10-pin) target connectors to standard 2.54mm header pinouts for easy wiring.

Ribbon Cable Assembly Included: Includes a multi-wire flat ribbon cable with keyed socket connectors to prevent accidental reverse-pin orientation during flashing.

Supports Firmware Uploads & Debugging: Enables seamless connection between CC-Debugger programmers and target boards for flashing Zigbee sniffer firmware, BLE protocol stacks, and custom firmware.

Compact PCB Adapter Board: Built on a miniature breakout board with clear pin silkscreen indicators for target pin mapping (VCC}, GND, RESET, DC, DD).

Module Construction: Built on a double-sided FR-4 glass epoxy PCB featuring gold-plated pin headers, durable shrouded socket connectors, and flexible insulated ribbon wiring.

Operating Voltage & Logic: Operates logic lines on nominal 3.3V DC supplied directly through the attached debugger programmer interface.

Handling Precautions: Align keyed socket notches carefully before pressing connectors together. Avoid pulling directly on the individual ribbon wires to prevent wire fatigue.

Environmental Limits: Operating temperature range spans -20°C to +70°C. Keep protected from static discharge, excessive bending stress, and liquid moisture.

Essential Tool for CC2531 Zigbee Flashing: Position as the indispensable programming cable adapter for home automation enthusiasts converting CC2531 USB dongles into Zigbee coordinators for Home Assistant or Zigbee2MQTT.

Solves Micro-Pitch Cable Bottlenecks: Highlight how this adapter eliminates the struggle of connecting standard jumper wires to ultra-tiny 1.27mm pitch IC headers.

Recommended Cross-Sell Add-ons: Pair with TI CC-Debugger Programmers, CC2531 USB Sniffer Dongles, CC2540/CC2541 BLE Modules, and Dupont Jumper Wires.

Ideal for Smart Home & Wireless Development: Great accessory for wireless IoT developers, Zigbee network integrators, and Bluetooth Low Energy (BLE) firmware engineers.
