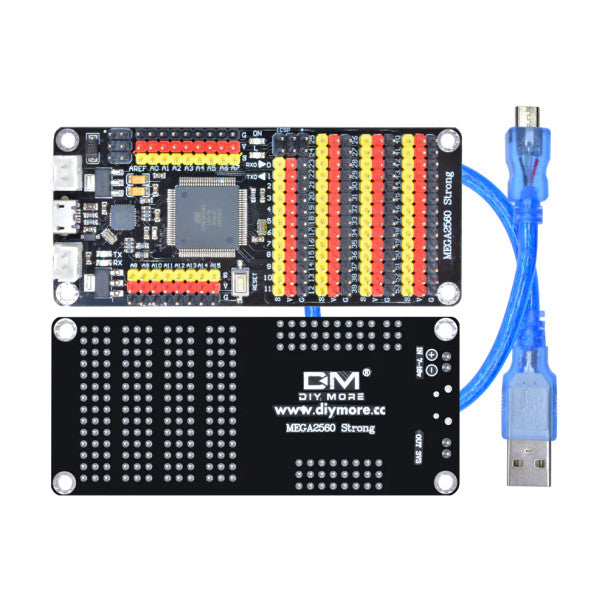

ATMEGA2560 ATMEGA16U2 Development Board

ATmega2560 Core Processing Power: Powered by the high-performance ATmega2560 8-bit microcontroller running at 16MHz with 256KB flash memory for extensive programs and data buffering.

ATmega16U2 High-Speed USB Interface: Features the ATmega16U2 USB-to-Serial converter for faster transfer rates, true USB HID emulation capability, and driverless setup on most operating systems.

54 Digital I/O & 16 Analog Inputs: Expands prototyping capabilities with 54 digital input/output pins (15 PWM capable) and 16 analog input channels for high-density sensor arrays.

4 Hardware Serial Ports (UARTs): Built-in quad hardware serial channels enable simultaneous communication with multiple modules (GPS, Bluetooth, displays) without timing delays or software overhead.

100% Arduino Mega R3 Form Factor: Standard Mega layout ensures full hardware compatibility with Arduino Mega expansion shields, modules, and 5V logic accessories.

PCB Construction: Built on a multi-layer FR-4 glass epoxy printed circuit board featuring clear silk-screened pin headers and durable surface-mount ICs.

Power Supply Tolerances: Operates on 5V DC logic. Accepts power via USB Type-B or 7V–12\textV DC through the onboard DC barrel jack or VIN pin. Do not exceed 20V input to prevent voltage regulator overheating.

Handling & ESD Precautions: Observe standard anti-static procedures when touching exposed board headers; disconnect power sources before modifying breadboard circuit wiring.

Environmental Limits: Operating temperature range is -10°C to +60°C. Keep protected from static discharge, metallic dust, and liquid moisture.

Premium Mega R3 Hardware Pitch: Highlight the official-style ATmega16U2 USB chip over standard CH340 clones for customers needing faster baud rates, native USB HID capability, and plug-and-play stability.

Robotics & 3D Printer Workhorse: Market to advanced builders as the ideal core board for RAMPS 3D printer setups, multi-axis CNC machines, and complex robotic control hubs.

Recommended Cross-Sell Add-ons: Pair with USB Type-A to Type-B Cables, Multi-Channel Relay Modules, 12V Power Adapters, and Sensor Expansion Shields.

High-Capacity Prototyping: Position as the go-to development platform for projects requiring extensive I/O capacity and memory beyond traditional UNO boards.
