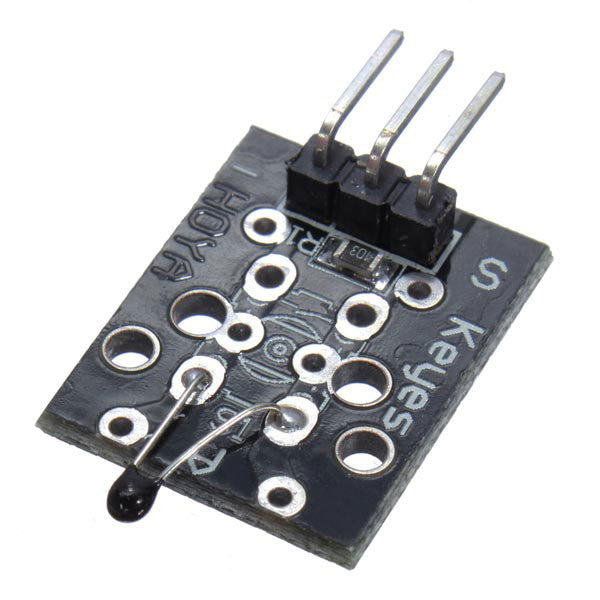

Analog Temperature Sensor Module

Analog Resistance Telemetry: Employs an onboard NTC thermistor element that changes electrical resistance predictably in response to ambient thermal variation.

Direct Microcontroller Compatibility: Outputs a clean, variable analog voltage signal directly compatible with standard Analog-to-Digital Converter (ADC) pins on Arduino, ESP32, and Raspberry Pi Pico.

Plug-and-Play Breakout Design: Pre-mounted on a compact breakout board with an integrated pull-up resistor, eliminating the need for external breadboard components.

3-Pin Header Interface: Standard 3-pin configuration (Signal, VCC, GND) for hassle-free wiring using standard female-to-female DuPont jumper cables.

Broad Voltage Input Compatibility: Runs efficiently on 3.3V to 5V DC power rails, adapting seamlessly to low-power microcontrollers and standard 5V logic systems.

Board Material: High-grade FR-4 glass-epoxy breakout PCB with black solder mask and pre-soldered 3-pin male header connector.

Technical Specifications:

Sensor Type: NTC Thermistor Breakout Board.

Operating Supply Voltage: 3.3V – 5.0V DC.

Signal Output: Analog Voltage Output.

Measuring Temperature Range: -55°C – +125°C.

Board Color: Black PCB with White Silkscreen Markings.

Usage Advice: Connect VCC (3.3V - 5V), GND, and Signal (S) pins to your microcontroller board; convert the analog ADC reading into temperature using standard Steinhart-Hart equation libraries.

Maintenance: Keep board surface clear of metal dust, moisture condensation, and corrosive chemical fumes.

Essential Beginner Sensor Breakout: Position as an accessible, cost-effective starter module for STEM students and makers learning analog-to-digital signal conversion.

Highlight Plug-and-Play Simplicity: Emphasize how the onboard pull-up resistor and standard pin headers eliminate breadboard clutter and complex circuit wiring.

Recommended Cross-Sell Add-ons: Pair with 3PIN NTC Thermistor Temperature Sensor Module, 4PIN NTC Thermistor Temperature Sensor Module, 5V Temperature Sensitive Relay Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Thermistors collection page as your standard analog thermistor breakout module.
