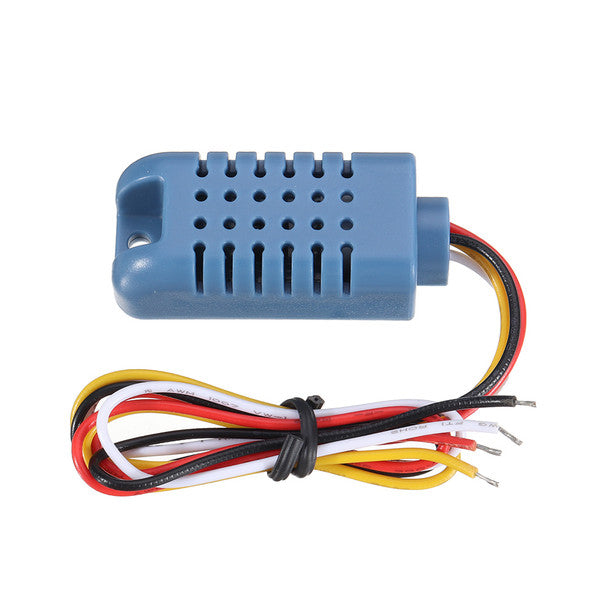

AMT1011A Resistive Temperature And Humidity Sensor

Analog Voltage Signal Output: Delivers high-accuracy analog voltage outputs for both temperature and relative humidity, simplifying direct ADC sampling on microcontrollers.

Resistive Humidity & NTC Thermal Sensing: Integrates a humidity-sensitive resistive polymer element alongside a precision NTC thermistor inside a protective ventilated housing.

Low Power Consumption & Fast Response: Designed for energy-efficient operational profiles, offering fast thermal response times and high stability in continuous logging applications.

Pre-Calibrated Analog Output Curve: Calibrated at the factory to provide linear and predictable output voltage characteristics, minimizing complex software math and filtering overhead.

Convenient Pre-Wired Connector Harness: Features pre-attached insulated lead wires and a compact shell for rapid installation on breadboards, prototyping panels, or wall mounts.

Housing Material: Flame-retardant ABS polymer protective casing with standard color-coded lead wire harness.

Technical Specifications:

Operating Supply Voltage: 4.75V – 5.25V DC.

Temperature Measurement Range: -20°C – +60°C (-+ 0.5°C accuracy).

Humidity Measurement Range: 20% – 95% RH (-+ 5% RH accuracy at 25°C).

Output Signal: Analog Voltage Output.

Color: Light Blue Housing with Multi-Color Lead Wire Harness.

Usage Advice: Connect VCC to a stable 5.0V DC supply; route analog output channels directly to ADC pins on your Arduino, ESP32, or dedicated controller.

Maintenance: Ensure the ventilation slots remain free from dust, oil film, and liquid condensation to maintain accurate humidity response rates.

Essential Analog Environmental Sensor: Position as an easy-to-use analog sensor choice for HVAC systems, incubators, humidity control switches, and standalone analog logging projects.

Highlight Direct ADC Compatibility: Emphasize how direct analog voltage output avoids protocol timing issues associated with digital single-bus protocols.

Recommended Cross-Sell Add-ons: Pair with AHT10 - temperature and humidity sensor, AM2302 (DHT22) Temp & Humidity Sensor, DHT11 Temperature & Humidity Sensor Module, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Temperature Sensor Modules collection page as your standard analog resistive humidity and temperature sensor.
