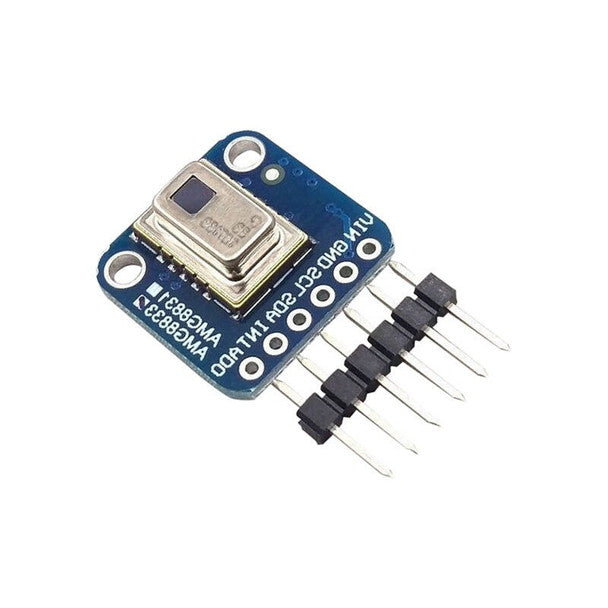

AMG8833 IR Thermal Imager Module

8x8 Infrared Thermal Array (64 Pixels): Utilizes Panasonic’s Grid-EYE AMG8833 thermopile array sensor to capture a 64-pixel real-time thermal image map.

Standard I2C Bus Interface: Communicates over a 2-wire I2C interface with configurable slave addresses, simplifying connection to host microcontrollers and single-board computers.

Integrated Temperature & Thermal Imaging Output: Detects human body and object thermal patterns across distances up to 7 meters with frame rates up to 10 Hz.

Wide Object Temperature Range: Measures object surface temperatures from 0°C to +80°C with a temperature accuracy of -+ 2.5°C.

3.3V / 5V Logic Compatibility: Onboard breakout board includes voltage regulation and I2C level shifting for direct compatibility with Arduino, Raspberry Pi, ESP32, and STM32.

Board Material: High-grade FR-4 glass-epoxy breakout PCB with gold-plated pads, onboard voltage regulator, and surface-mount sensor package.

Technical Specifications:

Sensor Core: Panasonic AMG8833 Grid-EYE Infrared Array.

Operating Voltage: 3.0V – 5.0V DC.

Temperature Range: 0°C – +80°C (Object Temperature).

Frame Rate: 1 Hz or 10 Hz.

Board Color: Blue PCB with Metallic Sensor Window.

Usage Advice: Align target within the sensor's 60° viewing angle; use standard Grid-EYE software libraries to interpolate 8x8 raw pixel arrays into smooth thermal heatmaps.

Maintenance: Avoid touching or covering the central optical sensor lens with oils, solvents, or abrasive materials to preserve infrared transmittance.

Essential DIY Thermal Camera Module: Position as an accessible, high-tech module for building DIY thermal cameras, human occupancy detectors, smart HVAC control nodes, and non-contact hot-spot monitors.

Highlight 8x8 Grid-EYE Technology: Emphasize how the 64-pixel thermal array goes beyond single-point IR thermometers by creating two-dimensional thermal matrices and heatmaps.

Recommended Cross-Sell Add-ons: Pair with GY-906 MLX90614ESF Infrared Temperature Sensor, GY-906 MLX90614ESF -DCI Sensor Module, MLX90614ESF Non-Contact Infrared Thermometer, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Temperature Sensor Modules collection page as your primary non-contact thermal imaging camera breakout board.
