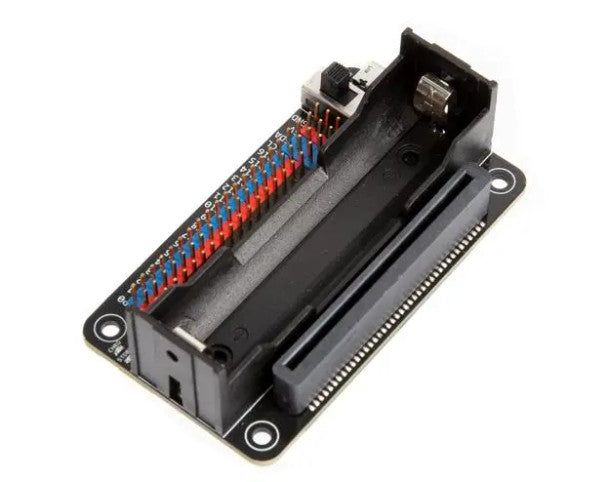

ACEBOTT Micro:bit-Shield-V1.0

Miniature Multifunctional Breakout Shield: Tailor-made for micro:bit V1 and V2 boards, providing an accessible expansion platform for robotics, STEM experiments, and wearable tech.

Standardized Color-Coded Headers: Features intuitive, color-coded pin headers to help students and makers easily identify signal, power, and ground connections without wiring mistakes.

Integrated 18650 Li-ion Battery Power: Built with an onboard 18650 battery holder (3.3V and 5V output) so projects and smart robots can run completely untethered offline.

Onboard Micro-USB Charging Circuit: Includes a dedicated Micro-USB charging port with dual LED status indicators (CHRG for active charging, STDBY for full battery).

Rich Peripheral Interface Support: Exposes key micro:bit pinouts including 3 PWM outputs, UART serial transmission, SPI bus, and I2C protocol lines (P19/P20).

Module Construction: Built on a compact, high-density FR-4 glass epoxy printed circuit board (78.4 mm x 44 mm, 30.2 g) featuring a durable micro:bit edge connector slot.

Power & Logic Voltage: Accepts power via the Micro-USB port or an 18650 rechargeable battery. Converts battery voltage to power 3.3V and 5V sensor expansion rails.

Handling Precautions: Hold carefully by the PCB outer edges. Observe polarity markings when inserting the 18650 battery to prevent reverse-voltage circuit damage.

Environmental Limits: Operating temperature range spans 0°C to +70°C. Keep protected from static discharge, conductive metal debris, and liquid moisture.

Essential Portable Power Solution: Market as a must-have upgrade for micro:bit users who want to disconnect from PC USB cables and build mobile, battery-operated projects.

Beginner-Friendly STEM Starter: Highlight color-coded headers as an key feature for young students and classroom environments, reducing breadboard troubleshooting times.

Recommended Cross-Sell Add-ons: Pair with BBC micro:bit V2 Boards, 18650 Rechargeable Li-ion Batteries, 3V/5V Sensor Modules, and Micro-USB Cables.

Versatile Application Base: Perfect for powering compact mobile robot cars, wearable smart devices, DIY weather monitors, and interactive hardware prototypes.
