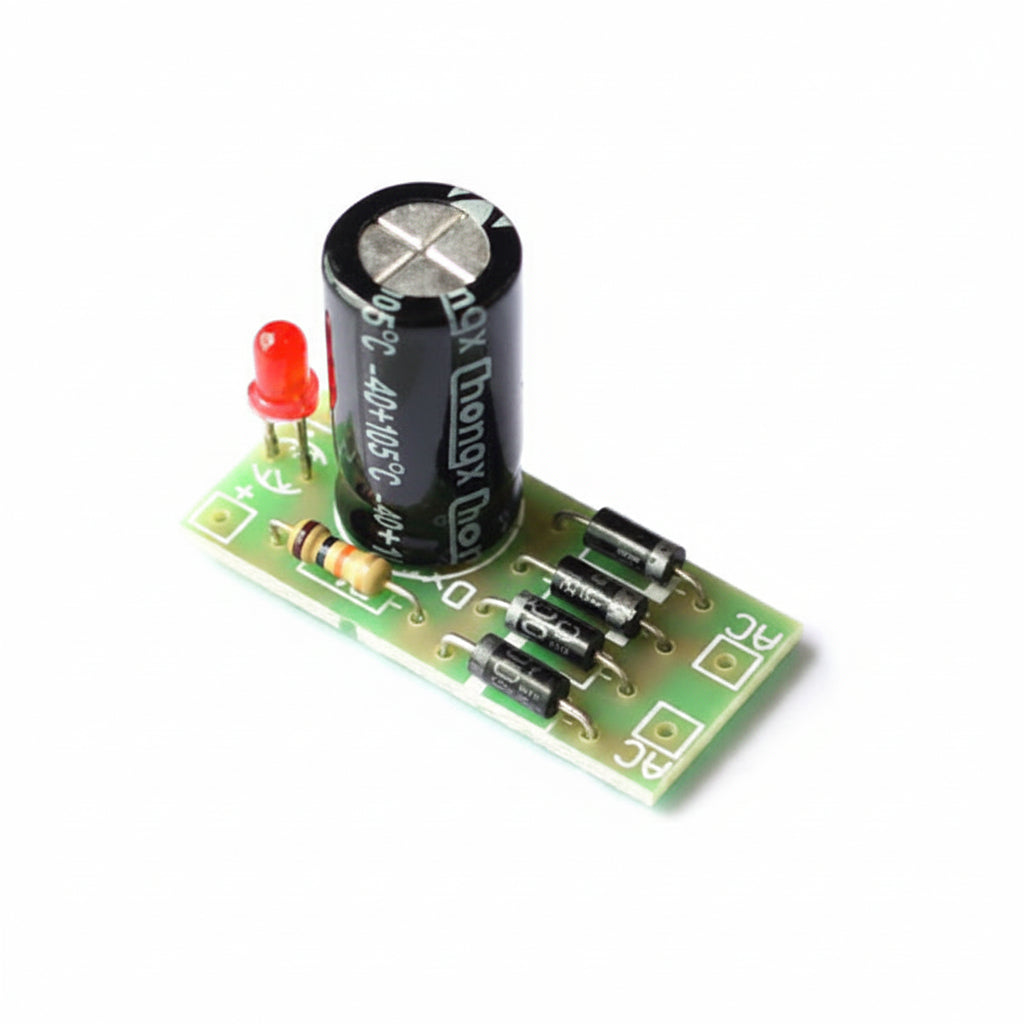

AC to DC 1N4007 full bridge rectifier module

Full Bridge Wave Rectification: Utilizes four high-reliability 1N4007 silicon diodes in a full-wave bridge configuration to convert AC voltage into DC voltage.

Filter Capacitor Smoothing: Features an integrated electrolytic filter capacitor (470uF–1000uF) to smooth out rectified DC voltage ripple for cleaner low-noise output.

Visual Power Indicator: Equipped with an onboard LED indicator light that provides instant visual confirmation of DC voltage output status.

Flexible Screw Terminal Block: Screw terminal connections allow easy connection of input AC and output DC wires without requiring soldering.

Wide Voltage Handling: Supports input AC voltages up to 12V–18V AC (peak 1A output current) suitable for low-power step-down transformer secondary outputs.

Compact PCB Layout: Small footprint circuit board design allows easy installation inside custom project boxes, enclosures, and breadboard test setups.

Housing & Construction Style: Open-frame printed circuit board (PCB) with through-hole soldered components (diodes, capacitor, resistor, LED, terminal block).

Contact & Terminal Style: 2-Pin Screw Terminal Block (AC Input: ~, ~; DC Output: +, -.

Technical Specifications:

Rectifier Diodes: 4 x 1N4007 (1000V max reverse voltage).

Input Voltage: AC 3V–18V (50/60Hz).

Output Voltage: DC V_out approx 1.414 x V_in AC.

Max Current Output: 1A Continuous.

Cooling: Passive air dissipation via open PCB layout.

Color: Green PCB with black diodes and electrolytic capacitor.

Usage Advice: Ensure connected continuous loads stay below 1A. Observe correct DC polarity (+ and - terminals) before wiring to sensitive downstream microcontrollers or loads.

Maintenance: Keep the PCB free of conductive metal dust, solder debris, and moisture. Designed for indoor prototyping and built-in project enclosure environments.
