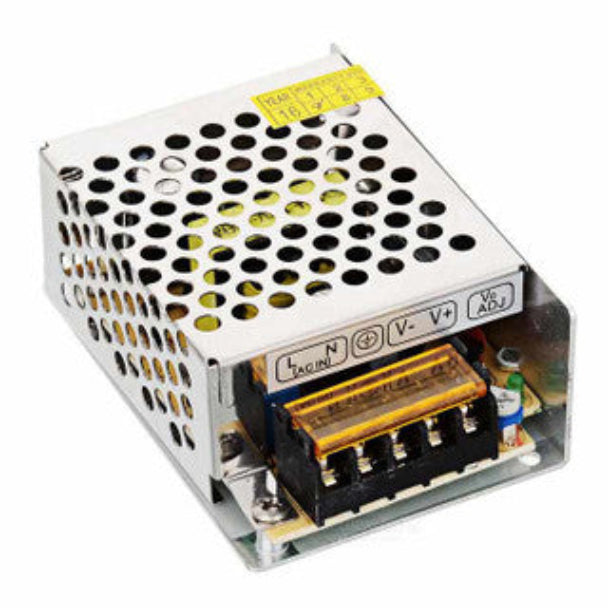

AC 220V TO DC 12V 3A Transformer Power Supply

36W Power Output: Efficiently steps down grid power to deliver a steady, regulated 12V DC output up to 3A (36W max), providing clean power for compact 12V DC equipment.

AC 220V Grid Input Compatibility: Works seamlessly with standard 220V AC (180V–240V) 50/60Hz grid power with minimal standby loss and reliable energy conversion.

Fine-Tuning Voltage Trim: Integrated adjustment potentiometer (V_ADJ) allows fine-tuning of output voltage (-+ 10%, approx. 10.8V – 13.2V) to offset line resistance over long cable runs.

Silent Convection Air Cooling: Features a perforated aluminum mesh enclosure designed for natural air dissipation, providing silent, fan-free continuous operation.

Protected Terminal Connectors: Sturdy screw-terminal block with a transparent protective insulation cover guards against accidental contact and shorts.

Built-in Circuit Safeguards: Integrated safety features shield connected devices from output short circuits, continuous current overloads, over-voltage spikes, and overheating.

Housing & Casing Style: Vented aluminum alloy casing designed for efficient passive heat dissipation and electromagnetic interference (EMI) shielding.

Contact & Terminal Style: Nickel-plated screw terminal block connectors (L, N, FG, -V, +V).

Technical Specifications:

Input Voltage: AC 220V -+ 15% (50/60Hz).

Output Voltage: DC 12V (Adjustable -+ 10%).

Output Current: 0A –3A Max.

Rated Power: 36W.

Cooling: Passive air convection via perforated casing.

Color: Silver metallic casing with yellow terminal marker.

Usage Advice: For continuous operational setups, size total connected loads to 80% of total rated capacity (2.4A / 28.8W). Verify phase (L), neutral (N), and ground (FG) terminals before applying main grid power.

Maintenance: Ensure the mesh enclosure is kept free of dust accumulation or metallic particles. Designed for indoor use; keep away from water spray and high moisture environments.

Essential 36W Power Hub: Position as a versatile intermediate power supply for LED lighting strips, multi-camera CCTV security hubs, access control systems, and DIY microcontroller workbenches.

Highlight Compact Size & Fan-less Design: Emphasize its silent, fan-free convection operation and small form factor that easily fits inside slim electrical junction boxes and equipment racks.

Recommended Cross-Sell Add-ons: Pair with AC 220V TO DC 12V 2A Transformer Power Supply, AC 220V TO DC 12V 5A Transformer Power Supply, AC 220V TO DC 12V 8A Transformer Power Supply, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Power Supply SMPS collection page under small-to-mid capacity 12V power supply units.
