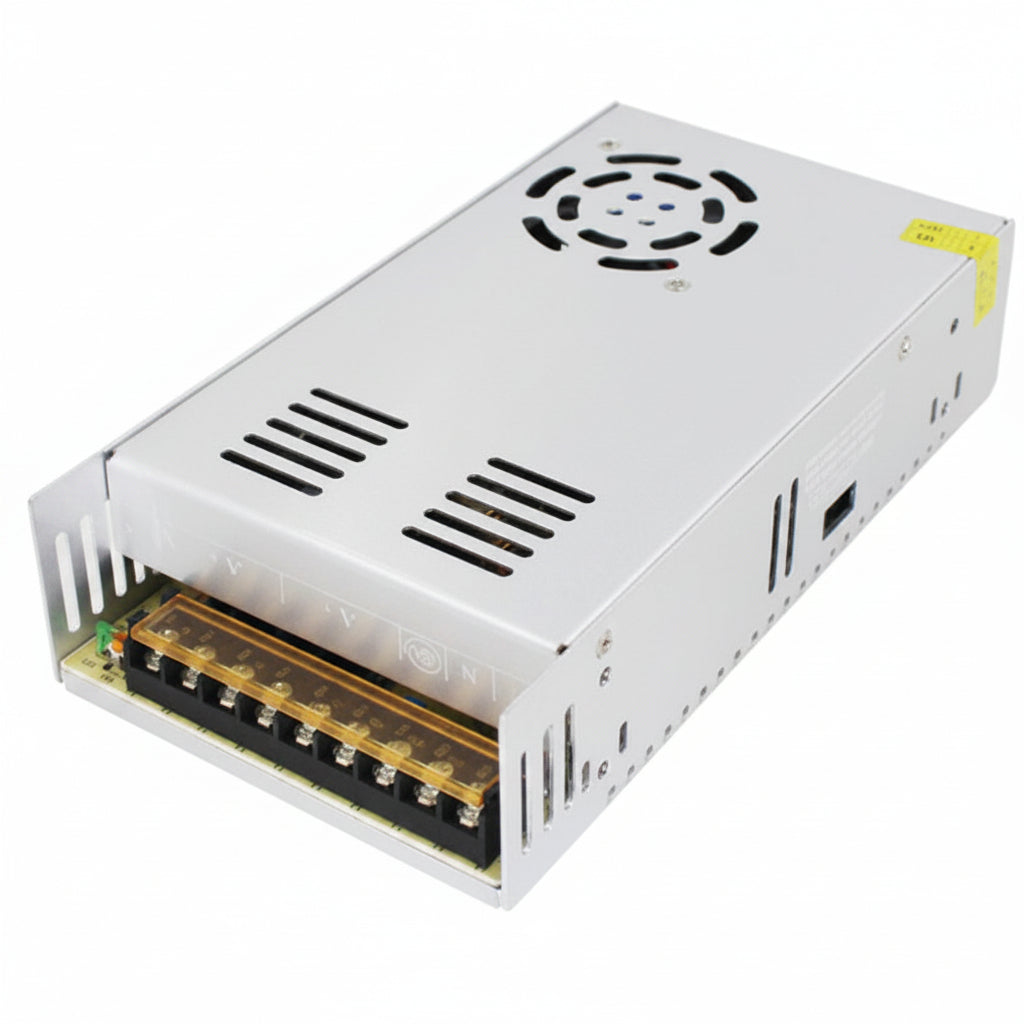

AC 220V TO 360W DC 24V 15A Transformer Power Supply

High Output 360W 24V Capacity: Converts mains AC power into a continuous, regulated 24V DC output up to 15A (360W max), engineered specifically to drive heavy 24V inductive and resistive industrial loads.

AC 220V Grid Compatibility: Optimized for standard 220V AC (180V–240V) 50/60Hz grid input, delivering high power conversion efficiency and low output ripple.

Active Cooling System: Features an integrated temperature-controlled DC cooling fan and perforated aluminum enclosure to maintain cool operating temperatures during prolonged high-current operation.

Fine-Tuning Voltage Trim: Includes an onboard adjustment potentiometer ($V_{\text{ADJ}}$) allowing precise calibration of the 24V rail ($\pm 10\%$, approx. $21.6\text{V}\text{–}26.4\text{V}$) to compensate for voltage drop across long wiring runs.

Protected Multi-Terminal Block: Heavy-duty nickel-plated screw terminals with a transparent protective safety shield support neat parallel wiring across multiple output branches.

Comprehensive Protective Circuitry: Onboard automatic protection guards against short circuits, continuous current overloads, over-voltage spikes, and thermal overheating conditions.

Housing & Casing Style: Industrial-grade vented aluminum alloy chassis designed for maximum thermal radiation and robust EMI shielding.

Contact & Terminal Style: Heavy-duty screw terminal block (L, N, FG, -V, -V, -V, +V, +V, +V).

Technical Specifications:

Input Voltage: AC 220V -+ 15% (50/60Hz).

Output Voltage: DC 24V (Adjustable -+ 10%).

Output Current: 0A–15A Max.

Rated Power: 360W.

Cooling: Active internal fan cooling.

Color: Silver metallic casing.

Usage Advice: For continuous operation, size loads to 80% of total rated capacity (12A / 288W) to optimize long-term component lifespan. Always verify proper Earth Ground (FG) connection prior to applying main power.

Maintenance: Regularly check that the active fan intake and side exhaust perforations are free of dust or debris accumulation. Indoor industrial use only; protect from moisture.

Essential 24V High-Power Workhorse: Position as the ultimate 24V power solution for NEMA 23/34 CNC stepper motors, heavy-duty 3D printer heated beds, 24V industrial automation control cabinets, and high-wattage 24V LED strip installations.

Highlight Heavy-Duty 15A Output & Active Cooling: Emphasize the reliable 15A high-current handling backed by active fan cooling that prevents overheating under heavy continuous workloads.
