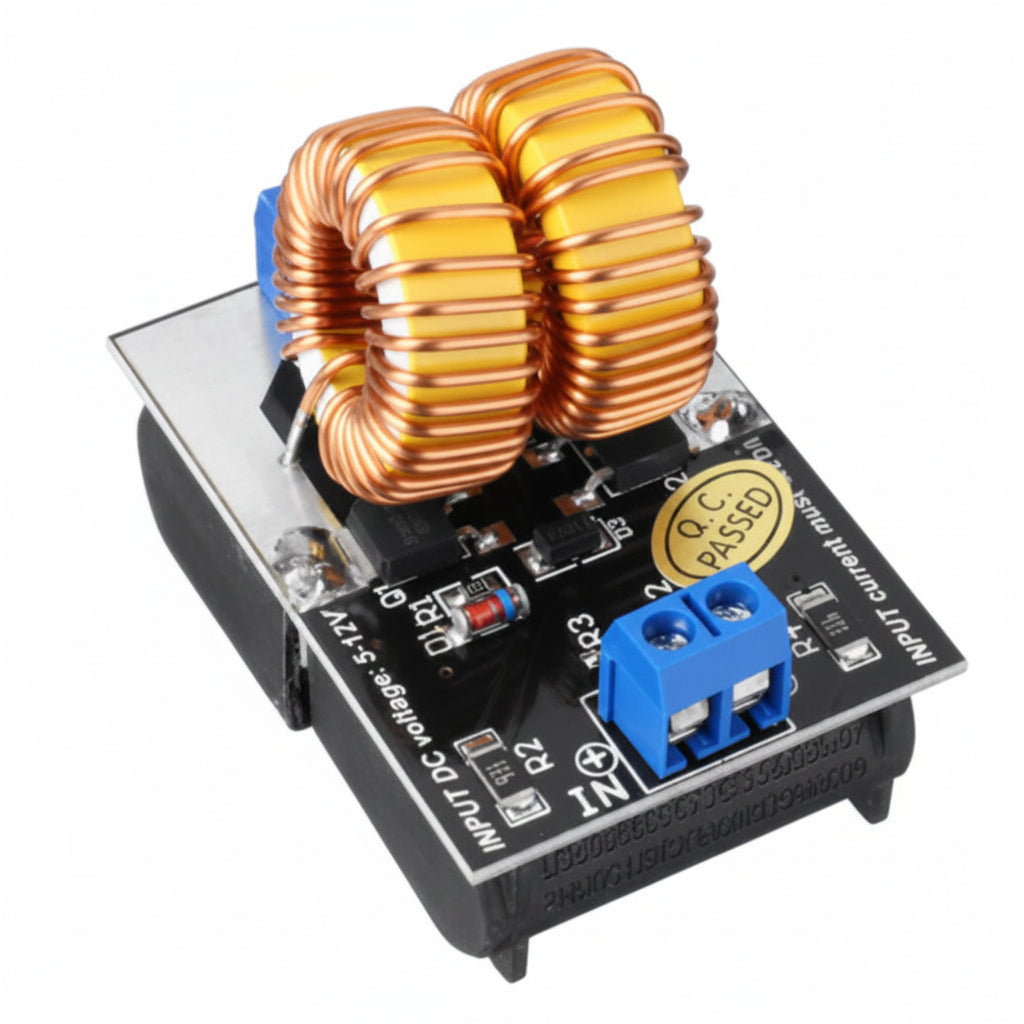

5v-12v ZVS Induction Heating Board Power Supply

Zero Voltage Switching (ZVS) Circuitry: Utilizes efficient ZVS topology to drive high-frequency induction heating with minimal switching losses and low MOSFET thermal stress.

Wide Operating Voltage Input (5V–12V DC): Flexible DC power input allows operation from standard 5V USB power sources up to high-power 12V bench supplies or lithium battery packs.

Included Heating Coil: Supplied with a pre-wound copper heating coil designed for fast electromagnetic induction and localized heat delivery.

High-Power High-Frequency Heating: Capable of generating rapid high temperatures for small metal objects, ideal for heat-treating, hardening, annealing, or miniature smelting projects.

Dual Toroidal Inductors & Quality MOSFETs: Built with heavy-duty copper-wound toroidal inductors and heatsinked power MOSFETs for continuous power delivery and stability under load.

Screw Terminal Connections: Onboard heavy-duty terminal blocks provide solid, secure connections for input power and the heating coil leads without requiring permanent solder.

Housing & PCB Style: Heavy-duty double-sided FR-4 PCB with integrated copper trace reinforcement and aluminum MOSFET heatsinks.

Contact & Terminal Style: High-current screw terminal blocks for DC power input and heating coil terminals.

Technical Specifications:

Input Voltage: 5V – 12V DC.

Max Power Rating: Up to 120W (at 12V DC input).

Heating Coil Diameter: Approx. 20mm – 25mm.

Color: Black PCB with brass/copper inductors and silver heatsinks.

Usage Advice: Ensure a high-current power supply is used (12V 10A+ recommended for maximum performance). Do not run the board without an installed coil (no-load operation can damage MOSFETs).

Maintenance: Allow components and the heating coil to cool completely after use. Keep PCB free of metal shavings, flux residue, and conductive dust.

Essential Desktop Induction Heater: Position as a versatile module for hobbyists, blacksmiths, jewelers, and makers working on small-scale metal heat treatment, wire annealing, or DIY soldering stations.

Highlight Rapid Electromagnetic Heating: Emphasize the flameless, clean heat delivery capable of turning small steel pins or nails red-hot in seconds without an open flame.
