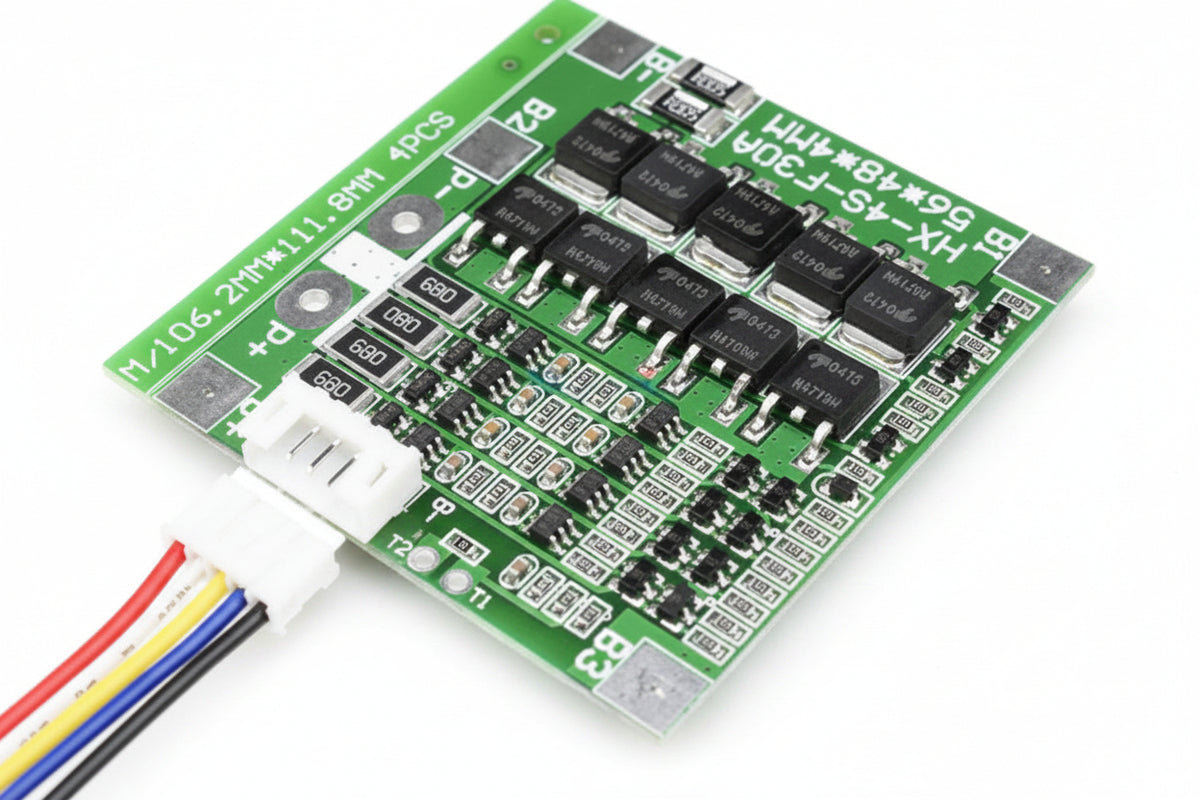

4S 30A 14.8V LI-ION Lithium 18650 Battery

4-Series (4S) Lithium Protection: Tailored for 4-cell 18650 lithium-ion / LiPo battery pack configurations operating at nominal 14.8V and peak 16.8V charging voltage.

30A Continuous Discharge Capacity: Delivers up to 30A continuous discharge current, making it ideal for high-power DIY battery builds, power tools, and high-drain DC motors.

Integrated Safety Circuitry: Features automated hardware protection cutoffs against overcharging, over-discharging, overcurrent, and short circuits to protect cell health and prevent thermal runaway.

Heavy-Duty PCB Trace Design: Built with low internal resistance power MOSFETs and heavy copper layers to ensure low heat buildup during high-current output.

Clear Terminal Solder Pads: Solder-friendly interface pads (B-, B1, B2, B3, B+, P-, P+) simplify connections for custom wiring harnesses.

Board Material: High-grade FR-4 glass epoxy printed circuit board with high-power surface-mount MOSFETs and protection control circuitry.

Technical Specifications:

Series Configuration: 4S (4 Cells in series).

Nominal / Max Voltage: 14.8V nominal / 16.8V max charge voltage.

Continuous Discharge Current: Up to 30A.

Board Color: Green PCB.

Usage Advice: Ensure all four 18650 cells are voltage-matched and balanced before soldering them to the board terminals.

Maintenance: Maintain adequate airflow around the board when running high continuous loads to prevent thermal cutoffs.

Essential High-Power 4S Module: Position as a core protection module for building or repairing 14.8V / 16.8V battery packs for power tools, drone ground stations, audio amplifiers, and robotics.

Highlight Reliable Hardware Protection: Emphasize how this board delivers essential safety features—preventing cell over-discharge and external short circuits—without requiring microcontrollers or programming.
