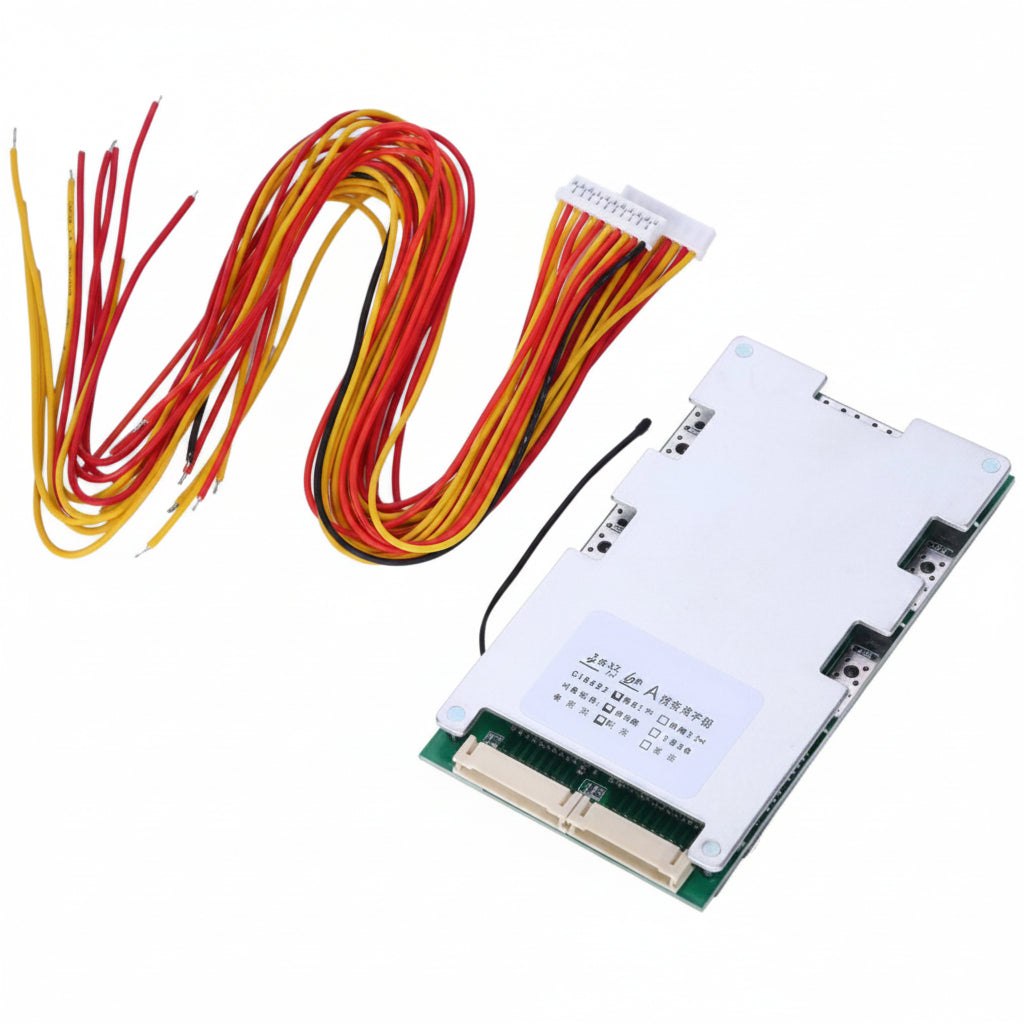

4S 12V 100A Protection Circuit Board

High-Current 4-Series (4S) Protection: Engineered for 4-cell 12V / 14.8V lithium-ion, LiPo, or LiFePO4 battery pack configurations operating up to 16.8V max charging voltage.

100A Continuous Discharge Capacity: Delivers up to 100A continuous discharge current with enhanced heat dissipation, built to handle heavy power demands in high-drain applications.

Integrated Cell Balancing Circuitry: Features passive cell voltage equalization during charging to keep all four series cells balanced, extending total battery pack life and capacity.

Multi-Layer Hardware Protection: Built-in automatic protection against overcharging, over-discharging, short circuits, and overcurrent to prevent battery damage and safety hazards.

Heavy-Duty Aluminum Heat Sink Housing: Encased in a rugged aluminum heat sink shell that shields PCB components from physical damage while efficiently cooling high-power MOSFETs.

Board & Housing Material: Heavy-duty aluminum enclosure housing a high-grade FR-4 PCB equipped with low-resistance power MOSFETs and balancing circuitry.

Technical Specifications:

Series Configuration: 4S (4 Cells in series).

Nominal / Max Voltage: 12.8V / 14.8V nominal (up to 16.8V max charge voltage).

Continuous Discharge Current: Up to 100A.

Balance Function: Yes (Integrated passive cell balancing).

Color: White / Silver housing with color-coded multi-pin balance wire harness.

Usage Advice: Connect the included balance wire harness accurately to each cell node sequence starting from B- up to B+ before connecting high-current load leads.

Maintenance: Ensure adequate airflow or ventilation around the aluminum housing when operating under high continuous current loads.
