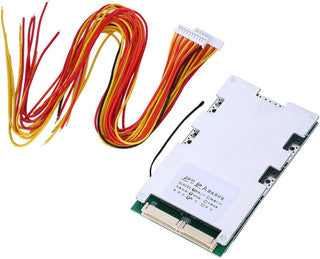

3S 12V 100A Protection Circuit Board

High-Current 3-Series (3S) Protection: Engineered for 3-cell 12V lithium-ion / LiPo battery pack configurations operating at nominal 11.1V / 12V and peak 12.6V charging voltage.

100A Continuous Discharge Capacity: Delivers up to 100A continuous discharge current with enhanced heat dissipation, built to handle heavy power demands in high-drain applications.

Integrated Cell Balancing: Features passive voltage balancing circuitry that equalizes cell voltages during charge cycles, preserving overall battery health and cycle life.

Comprehensive Safety Safeguards: Built-in hardware protection against overcharging, over-discharging, overcurrent, and short circuits to ensure maximum operational safety.

Heavy-Duty Aluminum Heat Sink Housing: Encased in a rugged aluminum heat sink shell that shields components from physical damage while efficiently cooling high-power MOSFETs.

Board & Housing Material: Heavy-duty aluminum enclosure housing a high-grade FR-4 PCB equipped with low-resistance power MOSFETs.

Technical Specifications:

Series Configuration: 3S (3 Cells in series).

Nominal / Max Voltage: 11.1V–12V nominal / 12.6V max charge voltage.

Continuous Discharge Current: Up to 100A.

Balance Function: Yes (Integrated cell balancing).

Color: White / Silver housing with color-coded balance wire harness.

Usage Advice: Connect the included multi-pin balance wire harness accurately to each cell node sequence starting from B- up to B+ before connecting the main power output leads.

Maintenance: Ensure adequate ventilation around the aluminum casing when operating under sustained high-current loads.

Essential High-Output 12V BMS: Position as a heavy-duty protection module for building or upgrading high-capacity 12V battery packs for solar energy storage, high-power inverters, electric trolling motors, and audio systems.

Highlight 100A Capacity & Balancing: Emphasize how 100A continuous power output paired with integrated cell balancing ensures reliable performance and longevity for demanding 12V power builds.
