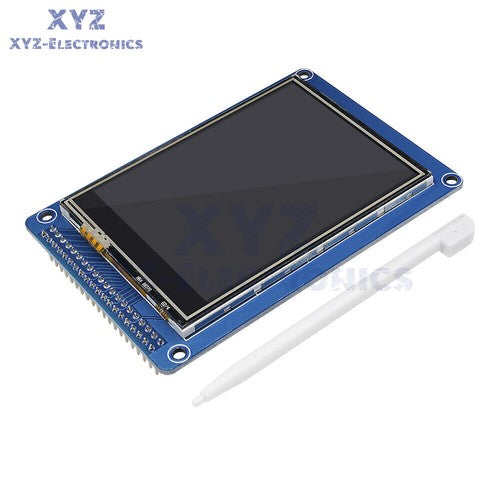

3.2 inch TFT LCD screen (Atmega 2560)

Vibrant 3.2-Inch Full-Color Touchscreen: Features a bright 480 x 320 high-definition LCD panel displaying 65K rich RGB colors for intuitive visual navigation and graphical interfaces.

Designed for Arduino Mega 2560: Specifically pinout-configured for direct connection to the Arduino Mega 2560 development board (often utilized via a dedicated Mega TFT shield adapter).

Integrated Touch Screen Support: Includes an onboard resistive touch panel and stylus, enabling direct touch control for custom buttons, dynamic menus, and interactive dashboards.

Onboard MicroSD Card Expansion Slot: Features an integrated MicroSD card socket on the back of the PCB module, allowing direct rendering of bitmap images, custom fonts, and offline data logging.

16-Bit Parallel Interface: Utilizes a high-speed 16-bit parallel bus driven by standard controllers (such as ILI9481 or SSD1289) for fast screen refreshes and minimal display lag.

Module Construction: Built on a multi-layer FR-4 glass epoxy printed circuit board featuring sturdy double-row header pins, glass LCD panel, and resistive touch layer.

Power Supply & Logic Tolerances: Operates on direct 3.3V logic levels. When connecting to standard 5V Arduino boards, use a compatible Mega TFT Shield adapter to supply regulated 3.3V power and protect signal lines.

Handling Precautions: Align header pins precisely with host or shield headers before pressing evenly into place. Avoid applying direct heavy pressure or sharp force on the touch screen glass surface.

Environmental Limits: Operating temperature range spans -20°C to +70°C. Keep protected from static discharge, metallic dust, and liquid exposure.

Ideal Mega 2560 Workhorse Display: Market as the essential full-color screen choice for high-memory Arduino Mega builds where smaller 16x2/20x4 character displays fall short.

Perfect for Custom Touch Interfaces: Position as a complete visual upgrade for DIY smart home consoles, 3D printer controller screens, CNC machine displays, and graphical test benches.

Recommended Cross-Sell Add-ons: Pair with MEGA 2560 TFT LCD 3.2 inch Screen Adapters, Arduino Mega 2560 Boards, MicroSD Memory Cards, and Touch Stylus Pens.

Rich Graphical GUI Solution: Highlight native library support (such as UTFT and URTouch) for easily rendering custom buttons, slider bars, real-time gauges, and bitmap images.
