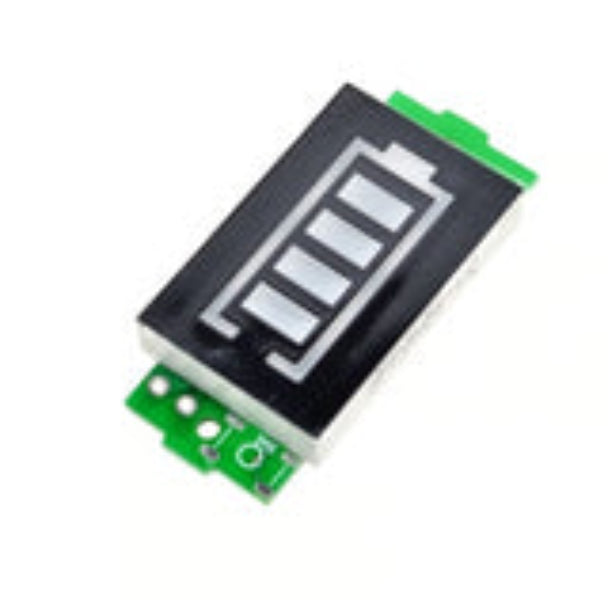

2S Lithium Battery Capacity Indicator

2-Series (2S) Lithium Battery Calibration: Engineered specifically for 2-cell (2 S) 7.4V nominal and 8.4V fully charged lithium-ion, LiPo, and 18650 battery packs.

5-Segment Visual LED Battery Bar Display: Features a clear 4-bar capacity grid surrounded by a battery frame indicator that lights up according to charge level:

6.6V (1 bar): 25% capacity

7.2V (2 bars): 50% capacity

7.8V (3 bars): 75% capacity

8.4V (4 bars): 100% capacity

Ultra-Low Operating Power Draw: Draws minimal quiescent current during operation, preserving your battery pack's total energy reserve while providing real-time status feedback.

Compact PCB Panel Form Factor: Compact module footprint allows easy mounting into battery enclosures, DIY project boxes, and portable device cases.

Simple Two-Wire Solder Interface: Clearly marked + and - solder pads make direct wiring to battery nodes or power switches fast and foolproof.

Board Material: High-grade FR-4 glass-reinforced epoxy PCB equipped with surface-mount LED indicators and precision voltage comparator ICs.

Technical Specifications:

Series Configuration: 2S (2 Cells, 7.4V nominal / 8.4V max).

Display Type: 5-segment LED Bar Graph (Blue/Green/Red options).

Operating Voltage Range: 6.0V – 8.4V DC.

Board Color: Green PCB.

Usage Advice: Connect the positive solder pad (+) to the battery positive terminal and negative (-) to ground; verify correct polarity before applying power.

Maintenance: Keep solder connections and lead wires dry and free from flux residue or dust to avoid stray currents and premature corrosion.
