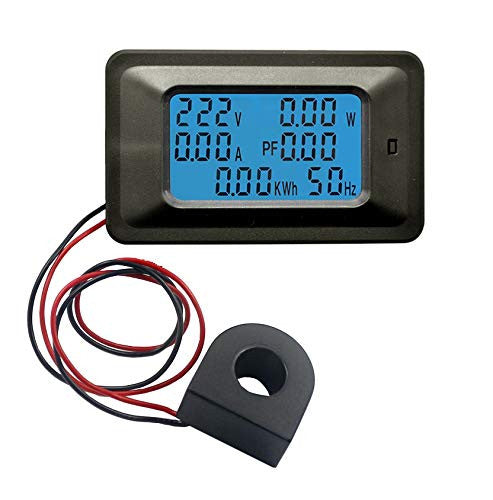

250V 100A Digital Power, Energy, Voltmeter & Ammeter Monitor

6-in-1 Multi-Parameter Power Diagnostic Meter: Simultaneously displays AC voltage (80V - 260V), current (0 - 100A), active power (0 - 22kW), energy consumption (0 - 999kWh), power frequency (45 - 65Hz), and power factor (0 - 1PF).

Included External Current Transformer (CT): Package includes a dedicated open/closed current transformer for safe, non-contact high-current sensing without interrupting primary AC line wiring.

Large Backlit High-Definition LCD Display: Features a blue backlit digital LCD panel displaying all 6 measurement metrics simultaneously with excellent visibility from wide angles.

Overload Power Alarm & Preset Function: Configurable power threshold alarm triggers the display backlight and power value to flash continuously when connected load exceeds set limits.

Non-Volatile Energy Data Storage: Automatically stores cumulative energy (kWh) readings during unexpected power outages or routine system shutdowns.

Front Panel One-Touch Control Button: Integrated push-button allows instant manual control of backlight state and one-touch clearing/resetting of accumulated energy (kWh) data.

Housing & Core Hardware: Durable, fire-retardant ABS enclosure designed for flush panel mount installation, supplied with an external AC current transformer coil.

Electrical Safety Ratings & Specifications:

Voltage Measurement Range: 80V - 260V AC (50/60Hz).

Current Measurement Range: 0A - 100A AC (via included external CT).

Rated Power Capacity: Up to 22,000W (22kW).

Installation Advice: Pass only ONE live load conductor wire through the center hole of the Current Transformer coil. Do not route both Live and Neutral cables together through the CT.

Cleaning & Handling: Keep front LCD screen and wiring terminals clean and dust-free using a soft, dry microfiber cloth. Avoid applying water or chemical solvent sprays.

Essential Commercial & Residential Power Monitor: Position as an indispensable panel-mount power monitor for main electrical sub-panels, solar inverter output tracking, generator distribution boxes, and industrial machine power cabinets.

Highlight 100A Capacity & CT Non-Contact Safety: Emphasize its heavy-duty 100A / 22kW load handling capacity and non-contact CT transformer design as key advantages over low-current in-line meters.

Recommended Cross-Sell Add-ons: Pair with 250V 20A Digital Power, Energy, Voltmeter & Ammeter Monitor, PZEM-022 CT 100A AC Digital Display Power Monitor Meter Open CT, DC 0-100V/10A Digital voltage current meter, and UNI-T UT15C DMM Digital Voltage Tester Meter.

High-Margin Industrial Panel Hero: A top-performing product to feature prominently on your Digital Voltage, Current, and Frequency Meter collection page.
