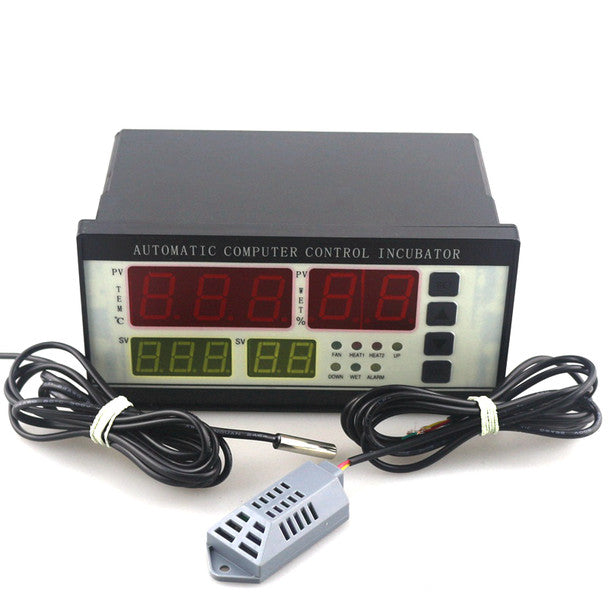

220V XM-18 Automatic Egg Incubator Controller

Fully Automated Incubator Microcomputer: Multi-function microcomputer system designed to precisely automate temperature, humidity, egg turning, and ventilation cycles for high hatch rates.

4-Screen High-Brightness Display: Features four independent digital LED screens that display real-time temperature, humidity, egg turning counts, and incubation days simultaneously.

Integrated Precision Sensor Suite: Includes a high-accuracy digital temperature sensor probe along with a capacitive relative humidity sensor for stable, drift-free environmental monitoring.

Automated Egg Turning & Ventilation Relays: Equipped with dedicated relay outputs to trigger egg turning mechanisms, exhaust ventilation, and emergency cooling fans automatically.

Multi-Stage Incubation Modes: Supports preset incubation programs for chicken, duck, goose, pigeon, and custom bird species to optimize environmental parameters during each stage.

Housing Material: Heavy-duty, flame-retardant ABS enclosure with panel-mount chassis and heavy-duty terminal blocks.

Technical Specifications:

Operating Voltage: AC 180V – 240V, 50Hz.

Temperature Measurement Range: 0°C – 99°C (-+ 0.1°C accuracy).

Humidity Measurement Range: 0% – 99% RH (-+3% RH accuracy).

Output Signal Relays: 7 channels (Main Heating, Auxiliary Heating, Exhaust/Cooling, Egg Turning Left, Egg Turning Right, Humidity Control, Alarm).

Color: Black Enclosure with Multi-Color LED Display Panel.

Usage Advice: Complete all high-voltage AC wiring to heating elements, humidity transducers, and turning motors with main power disconnected; check terminal connection screws before energizing.

Maintenance: Keep external sensor probes free of dust, feather debris, or eggshell residue after every hatch cycle to preserve calibration precision.

Essential Commercial Egg Incubation Engine: Position as the ultimate commercial-grade controller unit for upgrading DIY hatchers or replacing faulty units in large-scale poultry incubators.

Highlight Complete Process Automation: Emphasize how the XM-18 handles temperature, humidity, timed turning, and alarm protection in one unit, eliminating manual intervention.

Recommended Cross-Sell Add-ons: Pair with HTMC-7 220V Automatic Egg Incubator Controller, STC-3028 220AC Digital Temperature Humidity Controller, STC-3008 220AC Thermostat Dual Temperature Controller, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Thermostats collection page as your flag-ship automatic egg incubator automation system.
