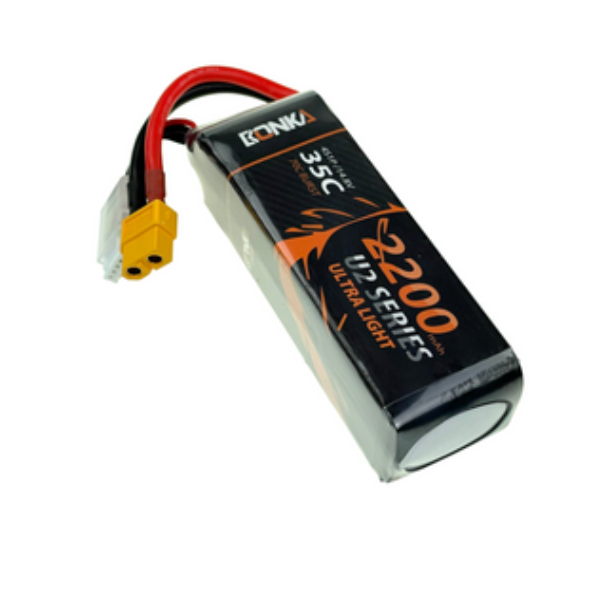

2200mAh 35C 4S 14.8V Lipo Battery XT60

High-Performance 2200mAh Capacity: Provides dependable, extended flight times and runtime for 4S FPV quadcopters, RC fixed-wing aircraft, and performance robotics setups.

35C Continuous Discharge Punch: Delivers up to 77A continuous discharge current (154A peak burst), providing throttle response and power stability without severe voltage sag during hard maneuvers.

Standard XT60 Power Connector: Pre-wired with an industry-standard XT60 female main power plug for high conductivity, low resistance, and reliable power transfer.

Integrated JST-XH 4S Balance Lead: Equipped with a standard 4S JST-XH balance connector to allow precise cell monitoring and safe charging with standard balance chargers.

14.8V Nominal (4S) Power Output: Built with four high-density lithium-polymer cells connected in series (16.8V peak charge voltage) for robust 4-cell power delivery.

Compact & Durable Soft-Pack Build: Enclosed in a protective shrink sleeve engineered to fit standard drone frame battery straps and battery trays without adding unnecessary weight.

Housing Style: Soft-pack high-density lithium polymer cell casing with protective shrink sleeve.

Contact & Wire Material: High-flex multi-strand silicone-insulated copper wire; gold-plated brass XT60 contacts.

Technical Specifications:

Capacity: 2200mAh.

Configuration: 4S1P / 14.8V Nominal / 16.8V Peak.

Discharge Rate: 35C Continuous.

Main Connector: XT60 Female.

Balance Connector: JST-XH 4S.

Color: Matte Black / Red-White labeling.

Usage Advice: Charge exclusively on "LiPo Balance" mode using a quality LiPo balance charger. Never discharge individual cells below 3.2V (12.8V total pack voltage) to prevent permanent battery damage.

Maintenance: Always store at storage voltage (3.8V–3.85V per cell) inside a fireproof LiPo safety bag when not in active use.

Essential High-Punch 4S Drone Battery: Position as a core 4S battery choice for mid-sized FPV freestyle quadcopters, RC scale planes, and custom high-voltage DIY electronics.

Highlight Plug-and-Play Compatibility: Emphasize the pre-soldered XT60 connector and flexible silicone leads that allow instant connection out of the box without extra wiring work.

Recommended Cross-Sell Add-ons: Pair with 1350mAh 120C 4S 14.8V LiPo Battery XT60, 5200mAh 4S 35C 14.8V LiPo Battery XT60, JST-XH 4S 22AWG Extension 20cm, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Essential: Display prominently on your 4 Cell Li-ion Battery Pack (14.8V~16.8V) collection page under versatile 4S power choices.
