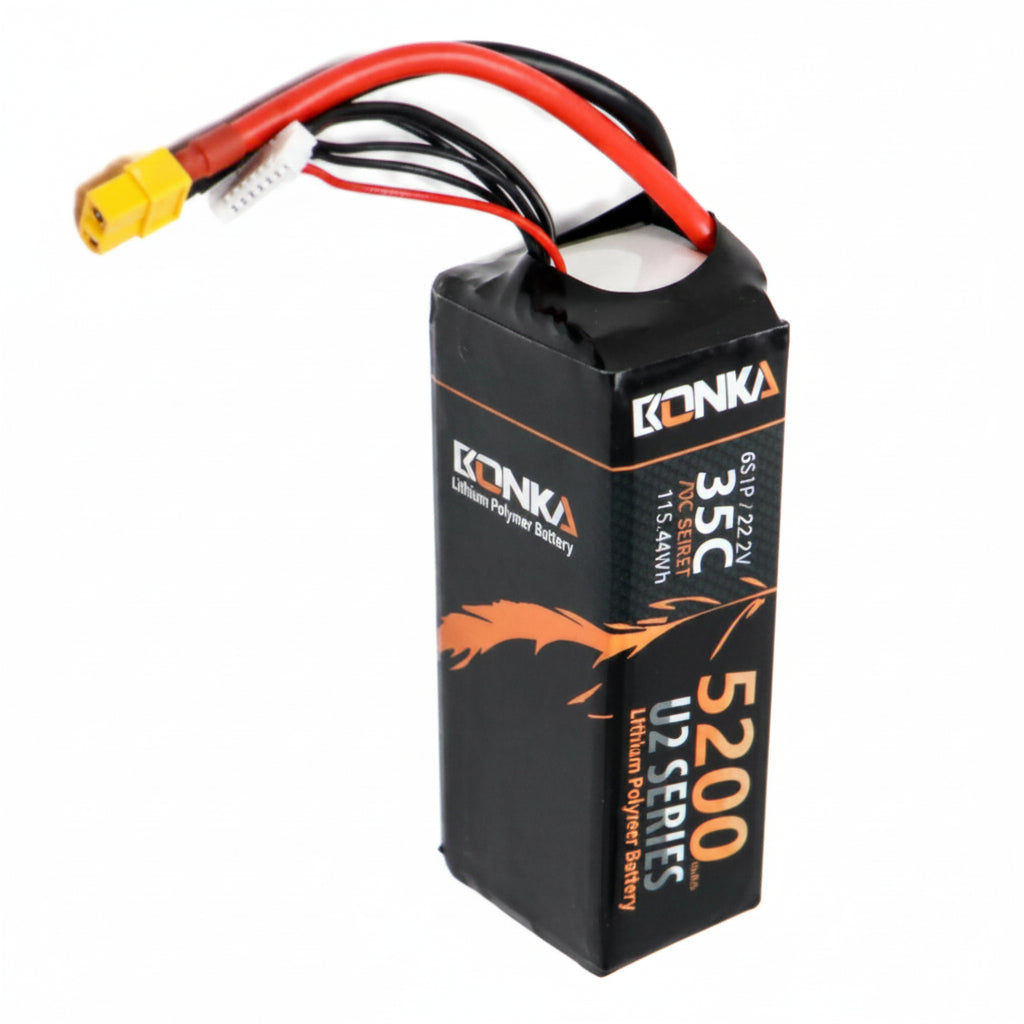

22.2V 5200mAh 35C 6S LiPo Battery Pack XT60

High-Capacity 5200mAh 6S Pack: Engineered to deliver long flight endurance and sustained power for heavy-lift 6S quadcopters, professional aerial photography platforms, and large-scale RC aircraft.

35C Continuous Discharge Performance: Capable of delivering up to 182A continuous discharge current (70C peak burst), ensuring responsive throttle delivery and minimal voltage sag under heavy load.

Factory Pre-Wired XT60 Connector: Features a high-quality XT60 female main power plug for low electrical resistance, optimal current transfer, and immediate compatibility.

Integrated 6S JST-XH Balance Lead: Equipped with a multi-pin 6S JST-XH balance connector to enable precise cell-by-cell monitoring and safe balance charging.

22.2V (6S) Nominal Output Voltage: Built with six high-density lithium-polymer cells connected in series (25.2V peak charge voltage) for high RPM motor efficiency.

Protective Soft-Pack Enclosure: Wrapped in a durable, impact-absorbing shrink sleeve designed to withstand flight stress while optimizing weight distribution.

Housing Style: Soft-pack high-density lithium polymer cell casing with protective shrink film.

Contact & Wire Material: High-flex silicone-insulated copper wire leads; gold-plated brass XT60 contacts.

Technical Specifications:

Capacity: 5200mAh.

Configuration: 6S1P / 22.2V Nominal / 25.2V Peak.

Discharge Rate: 35C Continuous.

Main Connector: XT60 Female.

Balance Connector: JST-XH 6S.

Color: Black / Orange-White labeling.

Usage Advice: Charge exclusively on "LiPo Balance" mode using a quality balance charger. Never discharge individual cells below 3.2V (19.2V total pack voltage) to prevent permanent capacity degradation.

Maintenance: Always store at storage voltage (3.8V–3.85V per cell) inside a fireproof LiPo safety bag when not in active use.

Essential Long-Endurance 6S Power Source: Position as a premium high-capacity power solution for commercial drone operators, long-range mapping platforms, and heavy RC models requiring extended operation.

Highlight Plug-and-Play Performance: Emphasize the pre-attached XT60 main connector and flexible silicone leads that eliminate extra wiring work prior to field deployment.

Recommended Cross-Sell Add-ons: Pair with 22.2V 1350mAh 200C 6S FPV UPSN Series LiPo Battery, 22.2V 1800mAh 120C 6S FPV U2 LiPo Battery, 22.2V 2200mAh 75C 6S LiPo Battery Pack XT60, and JST-XH 6S 22AWG Extension 20cm.

Featured Collection Star: Display prominently on your 6 Cell Li-ion Battery Pack (22.2V~25.2V) collection page under long-range high-capacity battery options.
