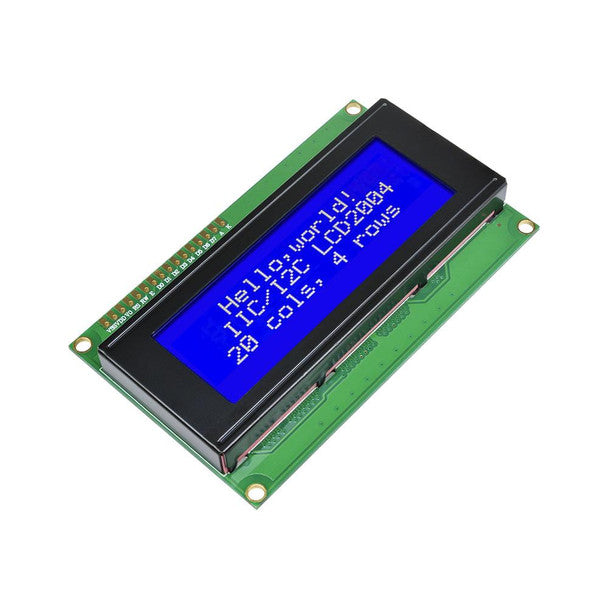

20X4 (2004) Blue Serial Backlight LCD

Large 20 x 4 Alphanumeric Screen: Displays up to 80 characters simultaneously across 4 lines (20 characters per line) for displaying detailed telemetry, system diagnostics, and multi-option menus.

Vibrant Blue Backlight with White Text: Features a high-contrast STN display matrix providing clear, sharp character legibility in dark, low-light, or standard indoor environments.

Standard HD44780 Controller Support: Driven by the industry-standard HD44780 display IC, making it natively compatible with the built-in LiquidCrystal library in the Arduino IDE.

Flexible 4-Bit & 8-Bit Interface: Supports both 4-bit and 8-bit parallel communication modes to suit your available microcontroller digital I/O pins.

Onboard Backlight & Contrast Pins: Includes dedicated pin pads for LED backlight power and variable contrast calibration via an external potentiometer.

Module Construction: Built on a multi-layer FR-4 glass epoxy PCB featuring precise silkscreen labels and standard 2.54mm pitch header pin solder pads.

Power & Logic Tolerances: Operates on standard 5V DC logic power. Use logic level conversion when interfacing with 3.3V microcontrollers to ensure stable operation.

Handling Precautions: Hold carefully by the outer circuit board edges. Avoid applying direct physical force or pressure onto the central glass display panel.

Environmental Limits: Operating temperature range spans -10°C to +60°C. Keep protected from static discharge, metallic dust, and direct liquid moisture.

Maximum Character Real Estate: Position as the go-to screen for projects where smaller 16x2 screens don't provide enough space for multi-sensor readouts and system states.

Ideal for Desktop & Enclosure Consoles: Market as an essential component for custom 3D printer interfaces, CNC controller boxes, smart weather stations, and rack-mounted equipment.

Recommended Cross-Sell Add-ons: Pair with PCF8574 I2C Backpack Adapters (to convert wiring down to just 2 I2C pins), 10K Ohm Potentiometers, and Arduino UNO / Mega Boards.

Clean Text Readout Solution: Position as a cost-effective, robust alternative to graphical screens when structured, high-readability text communication is required.
