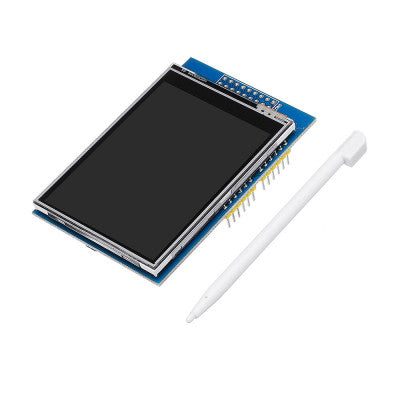

2.8" TFT UNO/MEGA LCD Touch Display Module

Bright 2.8-Inch Full-Color Touch Screen: Features a 240 x 320 resolution TFT LCD panel displaying rich 65K RGB colors for clear text, smooth graphics, and custom user interface layouts.

Direct Plug-and-Play Shield Form Factor: Designed to plug directly onto Arduino UNO R3, Mega2560, and compatible boards, eliminating complex wiring harnesses and breadboard setups.

Integrated Resistive Touch Panel with Stylus: Includes a built-in resistive touchscreen overlay for direct interactive control, customized touch buttons, and dynamic menu navigation.

Onboard MicroSD Card Slot: Equipped with a rear MicroSD card socket for easily reading bitmap images, custom graphic assets, fonts, or logging system data offline.

8-Bit Parallel Interface: Utilizes a fast 8-bit parallel bus interface (driven by controllers like ILI9341) for high-speed frame updates and smooth UI rendering.

Module Construction: Built on a multi-layer FR-4 glass epoxy printed circuit board with pass-through header pins, protective glass display matrix, and integrated touch screen layer.

Power Supply & Operating Voltage: Operates safely on 5V power supplied directly through host Arduino board headers, with onboard 3.3 V regulation for panel logic.

Handling Precautions: Align male pin headers precisely with host board headers before pressing firmly into place. Avoid applying excessive direct physical pressure to the glass touch surface.

Environmental Limits: Operating temperature range spans -20°C to +70°C. Keep protected from static discharge, conductive metal dust, and direct liquid moisture.

No-Wiring Interactive Display Choice: Highlight the direct plug-and-play shield design as the quickest way to add a full-color touch UI to Arduino UNO or Mega projects.

Perfect for Standalone Control Hubs: Market as an essential screen module for DIY smart home hubs, mini 3D printer controllers, desktop status dashboards, and weather monitor stations.

Recommended Cross-Sell Add-ons: Pair with Arduino UNO R3 Boards, Arduino Mega 2560 Boards, MicroSD Memory Cards, and Touch Stylus Pens.

High-Value Graphical Upgrade: Position as a versatile step up from basic character LCDs when rich visual layouts, multi-page menus, and interactive touch buttons are required.
