1S Lithium Battery Capacity Indicator

Single-Cell (1S) Lithium Calibration: Engineered specifically for 1-cell (1S) 3.7V nominal and 4.2V fully charged lithium-ion, LiPo, and 18650 battery cells.

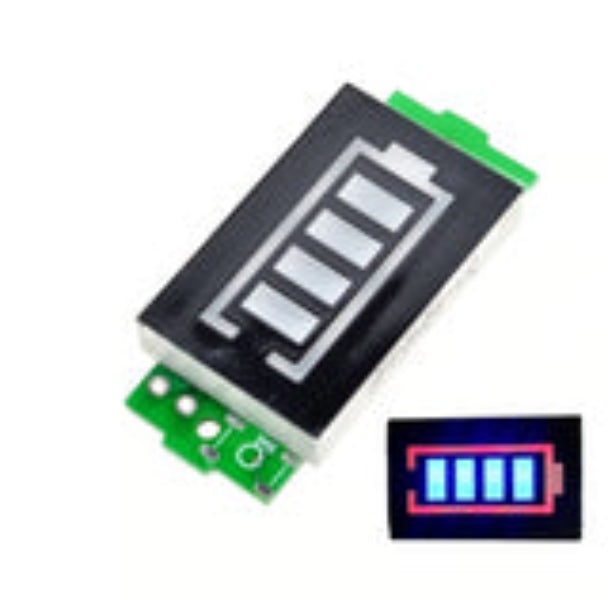

5-Segment Visual LED Battery Bar Display: Features a clear 4-bar capacity grid surrounded by a battery frame indicator that lights up according to charge level:

3.3V (1 bar): 25% capacity

3.5V (2 bars): 50% capacity

3.7V (3 bars): 75% capacity

3.9V (4 bars): 100% capacity

Ultra-Low Quiescent Power Draw: Draws minimal idle current during operation, conserving your cell's stored energy while providing continuous charge status.

Ultra-Compact PCB Form Factor: Ultra-slim profile allows seamless mounting into tight single-cell housings, portable devices, and custom project enclosures.

Simple Two-Wire Solder Pads: Clearly marked + and - solder points simplify direct wiring across the battery terminals or power switch contacts.

Board Material: High-grade FR-4 glass-reinforced epoxy PCB equipped with surface-mount LED indicators and precision voltage comparator ICs.

Technical Specifications:

Series Configuration: 1S (1 Cell, 3.7V nominal / 4.2V max).

Display Type: 5-segment LED Bar Graph (Blue/Green/Red options).

Operating Voltage Range: 3.3V – 4.2V DC.

Board Color: Green PCB.

Usage Advice: Connect the positive solder pad (+) to the battery positive terminal and negative (-) to ground; verify correct polarity before applying power.

Maintenance: Keep solder terminals free of flux residue, dust, and moisture to avoid parasitic drain or unintended shorts.
