1S 18650 Lithium Battery Capacity Indicator Module Level Tester LED

1-Series (1S) Lithium Battery Gauge: Designed specifically for single-cell (1S) 3.7V nominal / 4.2V max charge lithium-ion, LiPo, and 18650 battery cells.

4-Level LED Bar Display: Features 4 blue LED segments and 1 red battery outline frame LED to provide instantaneous visual indication of remaining charge percentage (25%, 50%, 75%, and 100%).

Real-Time Voltage Threshold Monitoring:

Battery voltage > 3.3V: 1st bar illuminates (25%).

Battery voltage > 3.5V: 2nd bar illuminates (50%).

Battery voltage > 3.7V: 3rd bar illuminates (75%).

Battery voltage > 3.9V: 4th bar illuminates (100%).

Low Static Power Consumption: Draws minimal quiescent current during operation to prevent unnecessary battery drain while testing.

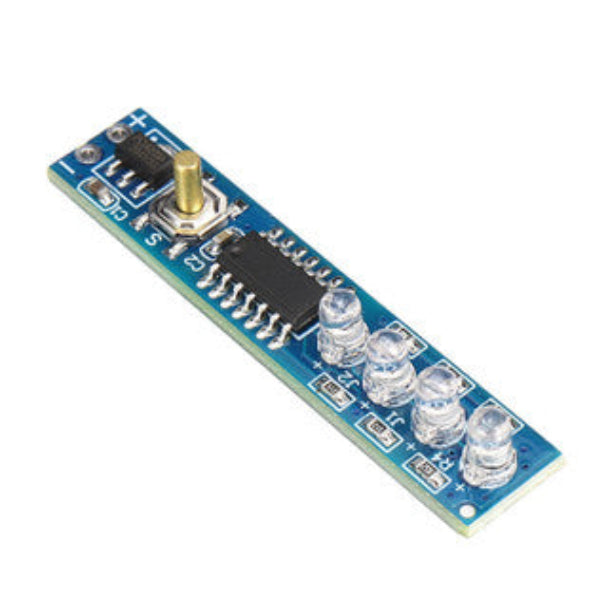

Ultra-Compact PCB Footprint: Small linear layout with solder terminals (+ and -) for effortless mounting on project enclosures, battery cases, and DIY power supplies.

Board Material: High-grade FR-4 glass-reinforced epoxy PCB equipped with surface-mount resistor array, LED display LEDs, and control comparator IC.

Technical Specifications:

Series Configuration: 1S (1 Cell, 3.7V nominal / 4.2V peak).

Display Type: 5-segment LED bar (1 red outline + 4 blue level indicators).

Working Voltage Range: 3.3V – 4.2V DC.

Board Color: Blue PCB.

Usage Advice: Solder the positive (+) and negative (-) pads directly across the battery leads or through a momentary push-button switch to check capacity on demand.

Maintenance: Keep the board clean, dry, and free of metallic debris to avoid short circuits across the solder pads.

Essential DIY Battery Monitor: Position as a must-have accessory for single-cell lithium projects, power banks, custom 18650 flashlights, RC vehicles, and portable Bluetooth speakers.

Highlight Momentary Testing: Recommend pairing with a tactile push-button switch so users can check remaining battery percentage without keeping the LEDs constantly lit.
