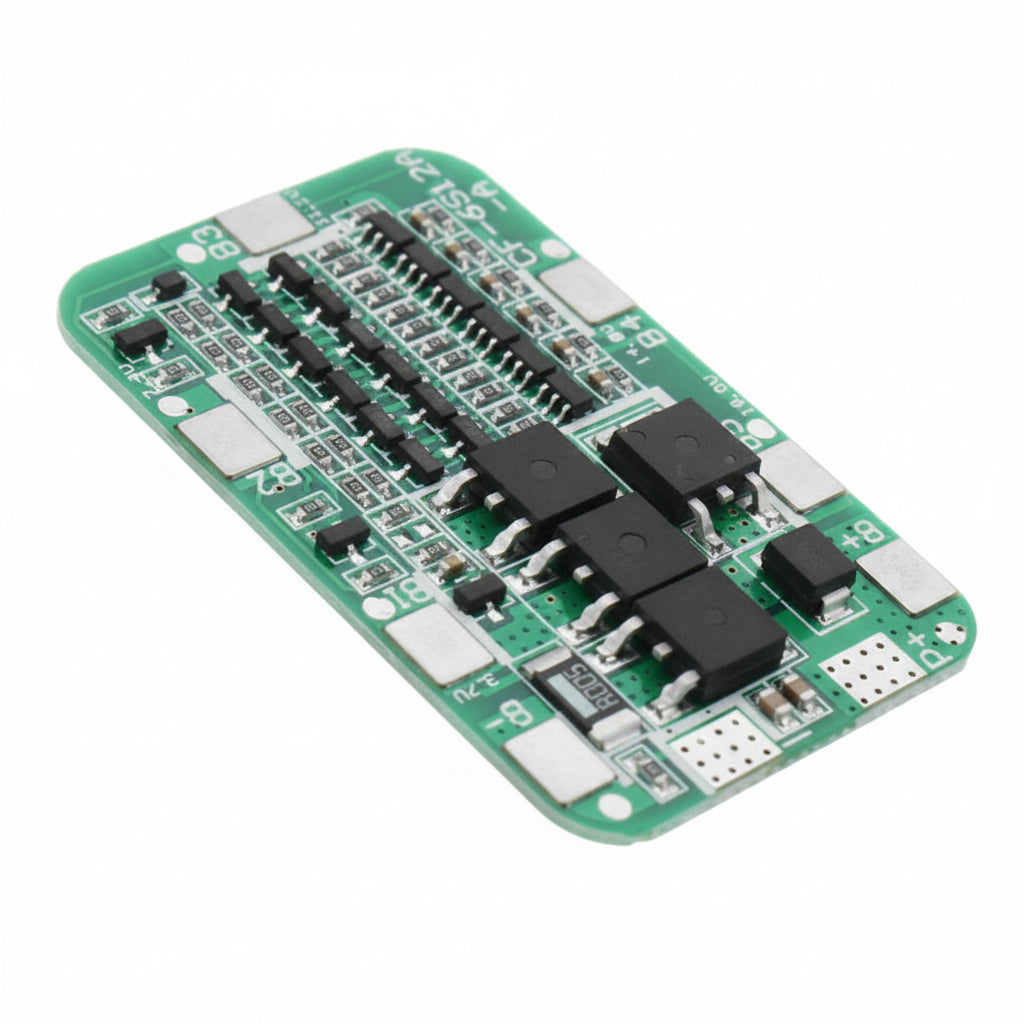

18650 BMS Board 6S 15A Balanced 24V

6-Series (6S) Lithium Battery Management: Designed specifically for 6-cell 18650 lithium-ion / LiPo battery pack configurations operating at nominal 22.2V and peak 25.2V charging voltage.

Integrated Passive Cell Balancing: Features built-in cell voltage balancing circuitry that equalizes individual cell voltages during the charge cycle, maximizing battery pack capacity and lifespan.

15A Continuous Discharge Current: Delivers up to 15A continuous discharge current with steady thermal performance, ideal for medium-power DC applications, electric tools, and small energy storage systems.

Full-Spectrum Multi-Protection: Provides automated, hardware-level cutoffs for overcharging, over-discharging, overcurrent, and short circuits to ensure safe operation.

Streamlined High-Density PCB Layout: Features clearly labeled solder terminals (B-, B1 through B5, B+, P-, P+) for clean, reliable wiring during custom battery pack assembly.

Board Material: High-grade FR-4 glass epoxy printed circuit board equipped with surface-mount power MOSFETs and balance resistor circuitry.

Technical Specifications:

Series Configuration: 6S (6 Cells in series).

Charging Voltage: 25.2V DC.

Continuous Discharge Current: Up to 15A.

Balance Function: Yes (Integrated passive cell balancing).

Board Color: Green PCB.

Usage Advice: Ensure all 6 lithium cells are individual voltage-matched (same state of charge) prior to soldering them to the BMS balance taps.

Maintenance: Keep the board clean, dry, and protected from metallic dust or static discharge that could short out solder pads.

Essential 24V Battery Pack Guardian: Position as the dedicated protection board for building 24V 18650 lithium-ion battery banks used in electric scooters, solar storage arrays, power tools, and robotics.

Highlight Cell Balancing & Protection: Emphasize how integrated cell balancing prevents individual cell drift and degradation, extending battery life while keeping multi-cell assemblies safe.

Recommended Cross-Sell Add-ons: Pair with 18650 BMS Board 4S 40A Balanced 16.8V, 18650 BMS Board 3S 40A Balanced 12.6V, 5S 15A Li-ion Lithium Battery BMS 18650 Charger Protection Board 18.5V 21V Cell, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Star: Display prominently on your Hardware Battery Management System collection page as your standard 6S 24V balanced protection board.
