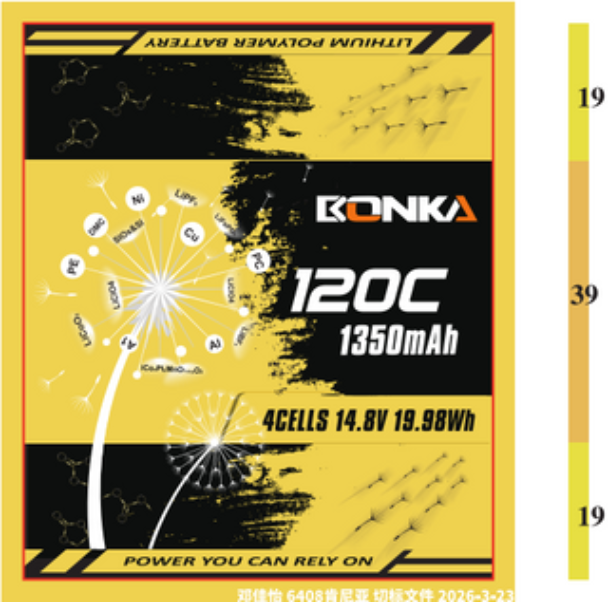

1350mAh 120C 4S 14.8V LiPo Battery XT60

Ultra-High 120C Continuous Discharge Rate: Engineered for maximum burst power and explosive throttle response without voltage sag, making it ideal for aggressive FPV racing and freestyle maneuvers.

1350mAh Compact Performance Capacity: Perfectly balances weight and runtime, offering the sweet spot for 5-inch FPV quadcopter flight dynamics and agility.

Standard XT60 Power Plug: Pre-wired with an industry-standard XT60 female main power connector for low contact resistance and high-amp current delivery.

Integrated JST-XH 4S Balance Lead: Equipped with a standard 4S JST-XH balance connector to enable accurate cell-level monitoring and safe charging with balance chargers.

14.8V Nominal (4S) Power Output: Built with four high-density lithium-polymer cells in series (16.8V peak charge voltage) for high-RPM motor performance.

Durable Soft-Pack Construction: Encased in a protective heat-shrink sleeve designed to absorb impacts and fit securely under standard battery straps.

Housing Style: Soft-pack high-density lithium polymer cell casing with protective shrink sleeve.

Contact & Wire Material: High-flex silicone-insulated copper leads; gold-plated brass XT60 contacts.

Technical Specifications:

Capacity: 1350mAh.

Configuration: 4S1P / 14.8V Nominal / 16.8V Peak.

Discharge Rate: 120C Continuous.

Main Connector: XT60 Female.

Balance Connector: JST-XH 4S.

Color: Yellow / Black labeling.

Usage Advice: Charge exclusively on "LiPo Balance" mode using a quality LiPo balance charger. Never discharge individual cells below 3.2V (12.8V total pack voltage) to prevent permanent battery degradation.

Maintenance: Always store at storage voltage (3.8V–3.85V per cell) inside a fireproof LiPo safety bag when not in active use.
