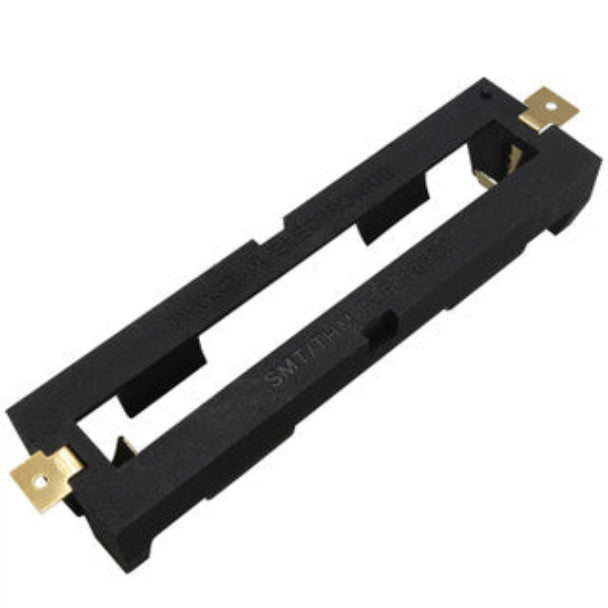

1 x 18650 Battery Holder SMD

Surface-Mount (SMD/SMT) Architecture: Low-profile surface-mount solder tabs enable direct automated or manual soldering onto PCB surface traces, optimizing layout real estate for compact electronics.

Single 18650 Lithium-Ion Cell Compatibility: Custom-molded cradle securely houses one 3.7V 18650 cylindrical lithium-ion cell, serving as a primary or backup DC power source for embedded systems.

Gold/Tin-Plated Phosphor Bronze Contacts: High-conductivity spring tension terminals ensure low contact resistance, minimal voltage drop, and reliable connection even under structural vibration.

High-Temperature Thermoplastic Housing: Crafted from heat-resistant UL94V-0 rated plastic that withstands reflow soldering heat and continuous operating temperatures without deforming.

Positive and Negative Polarity Indicators: Clearly molded polarity symbols (+ and -) on the base floor prevent reverse polarity battery installation and downstream circuit damage.

Secure Mechanical Snap Retention: Precision end tabs hold the battery tightly in place without requiring external clip hardware or zip ties, while remaining accessible for rapid cell swaps.

Housing Material: Flame-retardant, high-temperature UL94V-0 thermoplastic.

Terminal Material: Phosphor Bronze with selective Gold/Tin plating.

Technical Specifications:

Cell Support: 1x 18650 Li-ion Cell (3.7V nominal).

Mounting Style: Surface Mount Device (SMD/SMT).

Weight: 0.05 kg.

Color: Black body with gold-tone solder pads.

Usage Advice: Align solder tabs flush with PCB copper pads during surface soldering. Verify cell polarity signs on the base before inserting the 18650 battery.

Maintenance: Keep contact pads clean using isopropyl alcohol if oil or debris builds up over time.

Essential Power Tray for Custom PCB Rigs: Position as a core surface-mount battery housing for IoT devices, custom robotics, wireless sensors, and portable DIY prototyping hardware.

Highlight Compact SMD Profile & Solid Contact Tension: Emphasize its low-profile surface-mount design and high-conductivity terminals as key advantages for space-constrained electronics projects.

Recommended Cross-Sell Add-ons: Pair with 2 x 18650 Battery Holder SMD, 1 x 18650 BLM Cell Box, with Pin, Without Cover, SMD Chip Component LCR Testing Tool Multimeter Pen, and ESD antistatic mat 50x40CM PCB Welding Mat.

Featured Collection Essential: Display prominently on your Battery Holder & Cases collection page under the surface-mount power component section.
