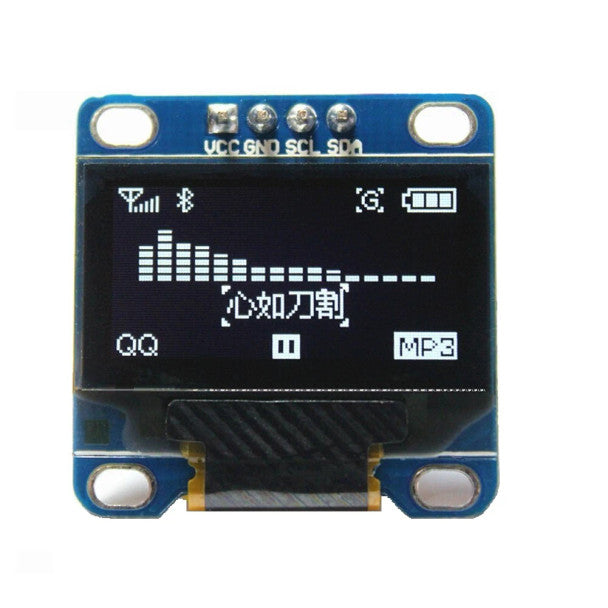

0.96" IIC 128x64 OLED TFT/LCD Module (White)

High-Contrast 128 x 64 White OLED Screen: Displays ultra-sharp white text and graphics against a true pitch-black background with wide viewing angles exceeding 160°.

Simple 4-Pin I2C Interface: Utilizes only 4 connections (GND, VCC, SCL, SDA) for full communication, keeping microcontroller GPIO pins free for additional hardware.

Compact Ultra-Light Form Factor: Packs crisp high resolution into a tiny 0.96-inch footprint, ideal for miniature devices and space-restricted project enclosures.

Energy-Efficient Self-Luminous Tech: OLED pixels emit their own light directly, eliminating the need for a power-hungry backlight and maximizing efficiency for battery-operated builds.

Broad Controller & Library Support: Powered by the industry-standard SSD1306 driver chip, making it natively compatible with popular Adafruit SSD1306/GFX, U8g2, and Arduino graphics libraries.

Module Construction: Built on a multi-layer FR-4 glass epoxy PCB featuring a high-density glass display panel and standard 2.54mm header pins.

Power Supply & Operating Voltage: Operates safely across 3.3V–5V DC power and logic levels. Always double-check pin sequence layout before applying power to prevent reverse polarity damage.

Handling Precautions: Hold carefully by the outer edges of the circuit board. Avoid applying direct force or heavy physical pressure onto the glass display screen.

Environmental Limits: Operating temperature range spans -30°C to +70°C. Keep protected from static discharge, conductive metal dust, and liquid moisture.

Essential High-Readability Miniature Screen: Market as a must-have micro display module for adding sharp, professional visual readouts to compact microcontroller builds.

Universal Microcontroller Compatibility: Emphasize seamless plug-and-play integration with Arduino UNO, Nano, ESP32, ESP8266, and Raspberry Pi platforms.

Recommended Cross-Sell Add-ons: Pair with Arduino UNO / Nano Boards, ESP32 IoT Boards, Solderless Breadboards & Jumpers, and Environment Sensor Modules.

Ideal for Portable & Wearable Projects: Great choice for displaying real-time sensor data, battery status gauges, desktop mini clocks, and compact hardware menus.
